NET CAMERA ACC I/O INTERFACE/T6101 02553-001 AXIS

Technical Specifications

• Description:

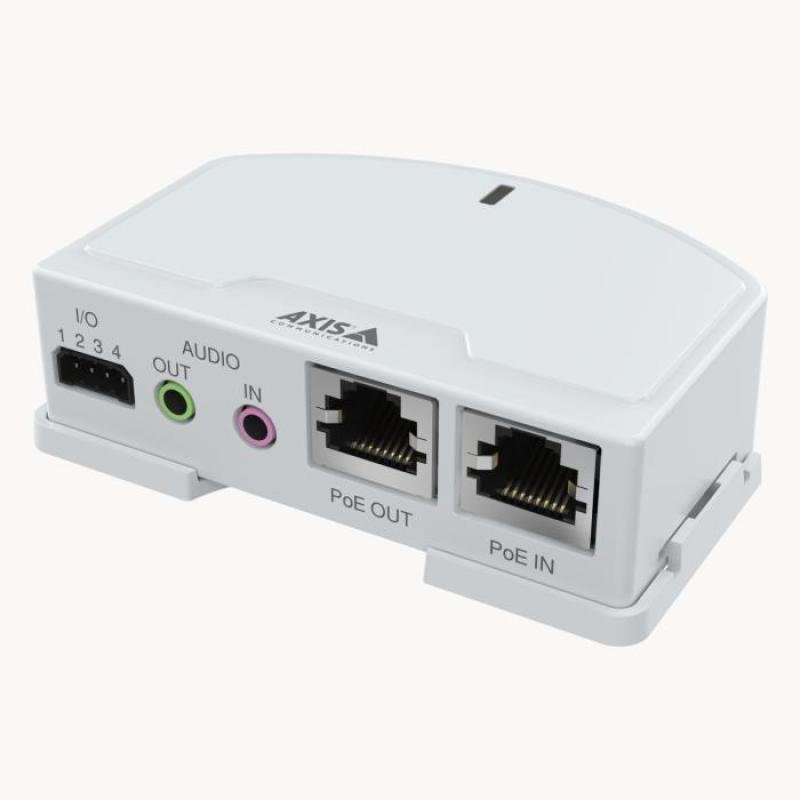

  AXIS T6101 Mk II Audio and I/O Interface
  Using portcast technology, AXIS T6101 Mk II allows audio and I/O to be transferred digitally over the network cable between the camera and the interface. When connected, it enables the seamless use of audio and I/O.

• Vendor Homepage: www.axis.com/products/axis-t6101-mk-ii-audio-and-io-interface
• Name: NET CAMERA ACC I/O INTERFACE/T6101 02553-001 AXIS
• Category Code: NCC
• Model: T6101 Mk II
• Audio-In: 1
• Audio-Out: 1
• RJ45: 2
• Terminal block: 1
• Power supply requirements: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2, 3 or IEEE 802.3at Type 2 Class
• Operating temperature range: -40 °C to 50°C
• Dimensions: 89 mm x 63 mm x 29 mm
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.000416
• Product Net Weight: 0.086
• Unit Calculated Weight: 0.5
