NET CAMERA ACC POE MIDSPAN 90W/02453-001 AXIS

Technical Specifications

• Description:

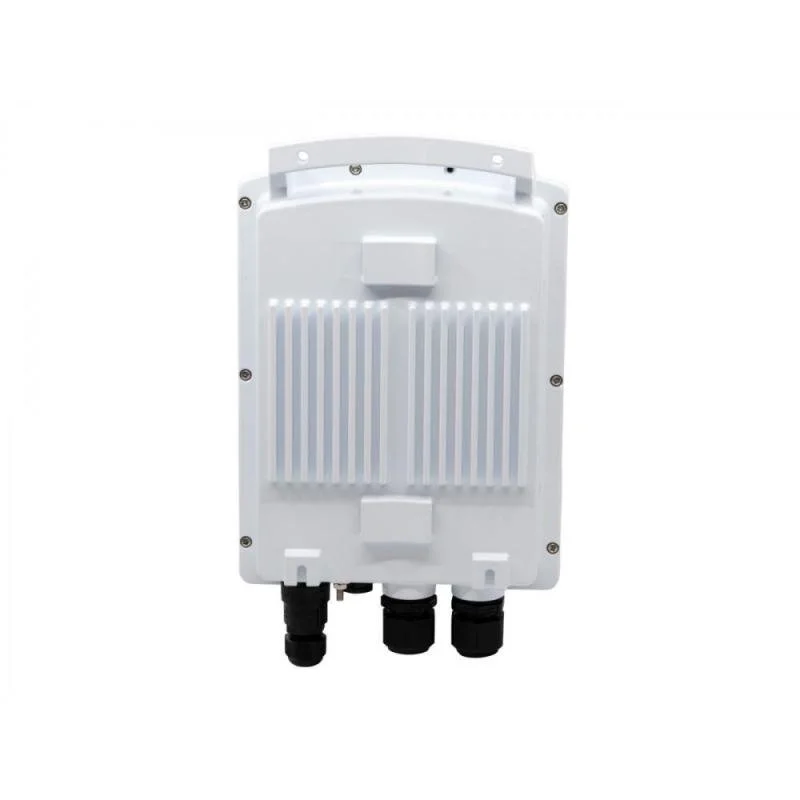

  AXIS TU8002-E 90 W Midspan
  AXIS TU8002-E is an outdoor-ready midspan with IP66/67 and NEMA TS2 rating. It has an extended temperature range from -40 °C up to 65 °C (-40 °F to 149 °F) at a certain power output. The midspan offers surge protection up to 6kV for both the AC and the PoE ports, ensuring the equipment is protected from surges. Thanks to the IP66/IP67-rated RJ45 connectors, there is no need to open the outdoor midspan, just connect the mains cable and the network video product. The 90 W midspan is compatible with IEEE 802.3af/at/bt and High PoE supported devices.

• Vendor Homepage: www.axis.com/products/axis-tu8002-e-90-w-midspan
• Name: NET CAMERA ACC POE MIDSPAN 90W/02453-001 AXIS
• Category Code: POE
• Model: TU8002-E
• Included Accessories: Installation guide, Drill template, 3-pin AC connector
• Operating temperature range: -40 °C to 55 °C
• Colour: White
• Dimensions: 246 x 170 x 58.5 mm
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00828
• Product Net Weight: 2.12
• Unit Calculated Weight: 2.59
