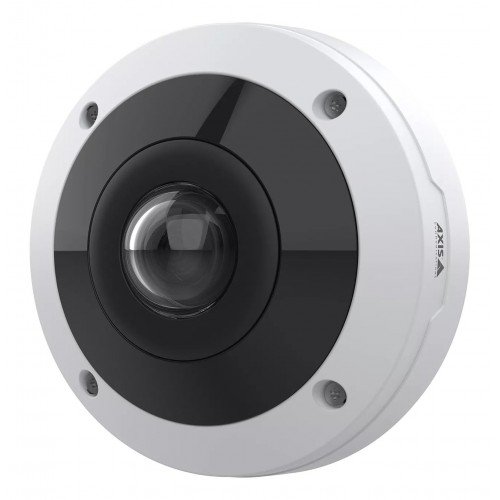

NET CAMERA FISHEYE DOME 12MP/M4318-PLR 02834-001 AXIS

NET CAMERA FISHEYE DOME 12MP/M4318-PLR 02834-001 AXIS
NET CAMERA FISHEYE DOME 12MP/M4318-PLR 02834-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2992 x 2992
  • Total megapixels: 12
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
66,018ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 439040
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis M4318-PLR. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Sensor type (panoramic camera): CMOS
  • Vendor Homepage: https://www.axis.com/products/axis-m4318-plr
  • Name: NET CAMERA FISHEYE DOME 12MP/M4318-PLR 02834-001 AXIS
  • Category Code: FNC
  • Model: 02834-001
  • Form factor: Dome
  • Mounting type: Ceiling/Pole
  • Product colour: White
  • LED indicators: Yes
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Alarm input/output: Yes
  • Built-in processor: Yes
  • Processor model: ARTPEC-8
  • Dynamic range: 120
  • Minimum illumination: 0.04
  • Lens viewing angle, horizontal: 182
  • Lens viewing angle, vertical: 182
  • Camera shutter speed: 1/8100 - 0.5
  • Sensor type (panoramic camera): CMOS
  • Number of sensors: 1
  • Optical sensor size: 1/2.3
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Fixed focus: Yes
  • Maximum aperture number: 2.2
  • Fixed focal length: 1.2
  • Night vision: Yes
  • Night vision distance: 15
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 2992 x 2992
  • Total megapixels: 12
  • Video compression formats: H.264/H.265/M-JPEG
  • Video recording: Yes
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness/White balance
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • RAM capacity: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Active tampering alarm: Yes
  • Network access storage (NAS): Yes
  • Pixel counter: Yes
  • Video motion detection: Yes
  • Cloud-managed: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 6.4
  • Power consumption (max): 12.95
  • DC output voltage: 12
  • DC output current: 0.025
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Weight: 860
  • Number of cameras: 1
  • Mounting kit: Yes
  • Manual: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00288
  • Unit Calculated Weight: 2
Specifications
Active tampering alarmYes
Alarm input/outputYes
Bit rate controlVariable Bit Rate (VBR)
Built-in processorYes
Camera shutter speed1/8100 - 0.5
Card reader integratedYes
Cloud-managedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC output current0.025
DC output voltage12
DC-in jackYes
Dynamic range120
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length1.2
Fixed focusYes
Flash memory8192
Form factorDome
Frame rate30
Housing materialAluminium/Polycarbonate (PC)
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness/White balance
Infra-red wavelength850
Infrared (IR) cut-off filterYes
International Protection (IP) codeIP66
LED indicatorsYes
LED typeIR
Lens viewing angle, horizontal182
Lens viewing angle, vertical182
ManualYes
Maximum aperture number2.2
Maximum resolution2992 x 2992
Minimum illumination0.04
Mounting kitYes
Mounting typeCeiling/Pole
Network access storage (NAS)Yes
Networking standardsIEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance15
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/2.3
Pixel counterYes
Placement supportedIndoor
Power consumption (max)12.95
Power consumption (typical)6.4
Power source typeDC,PoE
Processor modelARTPEC-8
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
RAM capacity2048
Sensor typeCMOS
Sensor type (panoramic camera)CMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis M4318-PLR. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Sensor type (panoramic camera): CMOS
Terminal block portYes
Text caption overlayYes
Total megapixels12
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight860
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

Optimized for surveillance onboard buses, this discreet, fisheye camera delivers outstanding images in any light conditions. It offers built-in cybersecurity features and support for advanced analytics based on deep learning on the edge.

360° view with just one camera
Designed to withstand strong shock and vibrations, this fisheye camera is optimized for surveillance onboard buses. And you don’t need to invest in several cameras—with AXIS M4318-PLR you get a complete 180° or 360° overview for total situational awareness. Plus, there’s just one camera to install, one cable to drop, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. Furthermore, this cost-efficient camera ensures a lower power budget.

Outstanding images
With a stereographic lens and Sharpdome 360, AXIS M4318-PLR delivers greater sharpness at the edges of the image. It features a 12 MP sensor and offers great image quality around the clock, regardless of the light conditions. Forensic WDR provides clarity when there’s both dark and light areas in the scene. And Lightfinder for sharp, color images in low light. Thanks to built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage even in low light or complete darkness. Furthermore, it supports up to four digital PTZ views as well as dewarped panorama, quad, corner, and corridor views.

Secure and easy
AXIS M4318-PLR offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, with a deep learning processing unit (DLPU), this high-performance camera delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

  • Sharpdome technology
  • Complete 180° and 360° overview
  • Built-in IR with individual IR LEDs
  • Support for advanced analytics
  • Built-in cybersecurity features

Model02834-001
NameNET CAMERA FISHEYE DOME 12MP/M4318-PLR 02834-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/f9c5f6f5-a70c-4488-8be8-5755202a9c8f.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/f9c5f6f5-a70c-4488-8be8-5755202a9c8f.Jpeg
Unit Calculated Volume0.00288
Unit Calculated Weight2
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m4318-plr
