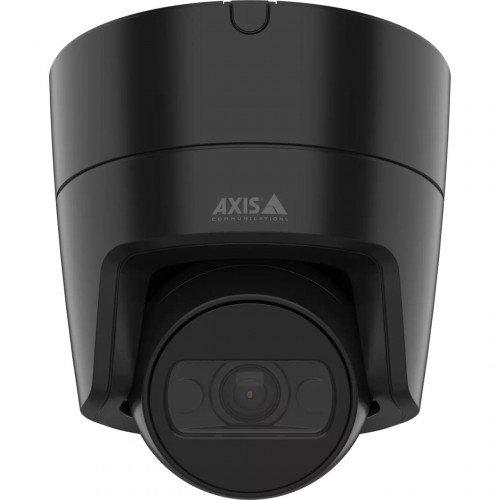

NET CAMERA M3125-LVE 2MP DOME/BLACK 02917-001 AXIS

Technical Specifications

• Summary: Axis M3125-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 110°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 40 m, Observe distance: 15.9 m, Recognize distance: 8 m
• Vendor Homepage: https://www.axis.com/products/axis-m3125-lve
• Name: NET CAMERA M3125-LVE 2MP DOME/BLACK 02917-001 AXIS
• Category Code: FNC
• Model: M3125-LVE
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• International Protection (IP) code: IP66
• IK code: IK08
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Dynamic range: 110
• Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Minimum illumination: 0
• Angle of rotation: 95
• Lens viewing angle, horizontal: 110
• Lens viewing angle, vertical: 60
• Tilt angle range: 0 - 60
• Pan range: -180 - 180
• Camera shutter speed: 1/25000 - 2
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Detect distance: 40
• Observe distance: 15.9
• Recognize distance: 8
• Identify distance: 4
• Fixed focal length: 2.9
• Night vision: Yes
• Night vision distance: 20
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video compression formats: H.264/H.265/M-JPEG
• Frame rate: 60
• Signal-to-Noise Ratio (SNR): 55
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
• Flash memory: 512
• Internal memory: 1024
• Power source type: PoE
• Power consumption (typical): 3.7
• Power consumption (max): 10.5
• Operating temperature (T-T): -30 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 101
• Depth: 87
• Height: 101
• Weight: 390
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001452
• Unit Calculated Weight: 1
