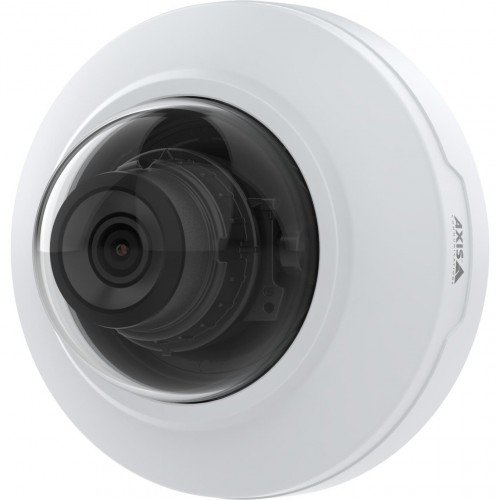

NET CAMERA M4218-V DOME/02678-001 AXIS

Technical Specifications

• Summary: Axis 02678-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.24 lx, Angle of rotation: 105°, Lens viewing angle, horizontal: 93 - 47°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Maximum resolution: 3840 x 2160 pixels, Total megapixels: 8 MP, Video compression formats: H.264, H.265, M-JPEG
• Vendor Homepage: https://www.axis.com/products/axis-m4218-v
• Name: NET CAMERA M4218-V DOME/02678-001 AXIS
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP42
• IK code: IK08
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Built-in processor: Yes
• Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Number of languages: 19
• Certification: CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.24
• Angle of rotation: 105
• Lens viewing angle, horizontal: 93 - 47
• Lens viewing angle, vertical: 50 - 26
• Tilt angle range: -40 - 65
• Pan range: -180 - 180
• Camera shutter speed: 1/71500 - 1/5
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Maximum aperture number: 2.6
• Minimum aperture number: 1.7
• Maximum resolution: 3840 x 2160
• Total megapixels: 8
• Video compression formats: H.264/H.265/M-JPEG
• Video recording: Yes
• Frame rate: 15
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Privacy masking: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP,
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 512
• Internal memory: 2048
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• Password protection: Yes
• Active tampering alarm: Yes
• Digest authentication: Yes
• IP address filtering: Yes
• Mirror: Yes
• Network access storage (NAS): Yes
• Pixel counter: Yes
• Video motion detection: Yes
• Power source type: PoE
• Power consumption (max): 4.8
• Power consumption (Power over Ethernet (PoE)): 3
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -30 - 65
• Operating relative humidity (H-H): 10 - 85
• Storage relative humidity (H-H): 5 - 95
• Height: 71
• Diameter: 120
• Weight: 356
• Number of cameras: 1
• Manual: Yes
• Packaging content: Owner authentication key, virtual client license for H.264/H.265
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001434
• Unit Calculated Weight: 0.47
