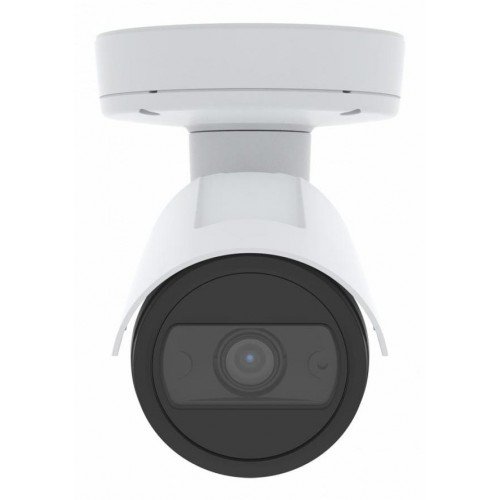

NET CAMERA P1455-LE 2MP/01997-001 AXIS

Technical Specifications

• Summary: Axis 01997-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 114 - 37°, Lens viewing angle, vertical: 58 - 21°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3x, Focal length range: 3 - 9 mm
• Vendor Homepage: https://www.axis.com/en-fi/products/axis-p1455-le
• Name: NET CAMERA P1455-LE 2MP/01997-001 AXIS
• Category Code: FNC
• Form factor: Bullet
• Mounting type: Wall
• Product colour: Black/White
• Housing material: Aluminium
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Alarm input/output: Yes
• Dynamic range: 120
• Certification: 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, IEC 62471, IEC 60068
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.01
• Lens viewing angle, horizontal: 114 - 37
• Lens viewing angle, vertical: 58 - 21
• Camera shutter speed: 1/66500 - 2
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 3
• Number of lenses: 1
• Focal length range: 3 - 9
• Maximum aperture number: 3.3
• Minimum aperture number: 1.6
• Night vision: Yes
• Night vision distance: 40
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video compression formats: H.264/H.265/M-JPEG/MPEG4
• Supported graphics resolutions: 160 x 90/1920 x 1080 (HD 1080)
• Video recording: Yes
• Frame rate: 60
• Video streaming: Yes
• Bit rate control: Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio system: 2-way
• Audio formats supported: AAC-LC/ADPCM/LPCM/PCM
• Sample rate: 48
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Networking standards: IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
• Quality of Service (QoS) support: Yes
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 512
• RAM capacity: 1024
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Terminal block port: Yes
• Alarm input channels: 1
• Alarm output channels: 1
• Password protection: Yes
• Active tampering alarm: Yes
• Alert notification type: E-mail
• HTTPS encryption: Yes
• IP address filtering: Yes
• Security algorithms: 802.1x RADIUS
• Video motion detection: Yes
• Power source type: PoE
• Power consumption (typical): 7.7
• Power consumption (max): 12.95
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Diameter: 132
• Length: 260
• Weight: 1000
• Number of cameras: 1
• Mounting brackets included: Yes
• Manual: Yes
• Harmonized System (HS) code: 85258900
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.006496
• Unit Calculated Weight: 1.29
