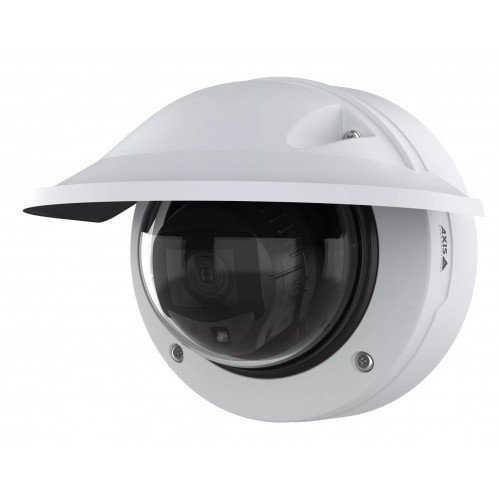

NET CAMERA P3277-LVE 5MP DOME/03213-001 AXIS

Technical Specifications

• Summary: Axis P3277-LVE Mic. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 95°, Lens viewing angle, horizontal: 104 - 34°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3 - 8.5 mm, Detect distance (wide): 60 m, Detect distance (tele): 170 m
• Vendor Homepage: https://www.axis.com/products/axis-p3277-lve
• Name: NET CAMERA P3277-LVE 5MP DOME/03213-001 AXIS
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: White
• LED indicators: Yes
• Housing material: Plastic/Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Alarm input/output: Yes
• Built-in processor: Yes
• Processor model: ARTPEC-9
• Dynamic range: 120
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.03
• Angle of rotation: 95
• Lens viewing angle, horizontal: 104 - 34
• Lens viewing angle, vertical: 76 - 26
• Tilt angle range: -45 - 80
• Pan range: -190 - 190
• Camera pixel size: 2
• Camera shutter speed: 1/30500 - 2
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Focal length range: 3 - 8.5
• Auto focus: Yes
• Maximum aperture number: 2.58
• Minimum aperture number: 1.38
• Detect distance (tele): 170
• Detect distance (wide): 60
• Identify distance (tele): 17
• Identify distance (wide): 6
• Observe distance (tele): 67
• Observe distance (wide): 24
• Recognize distance (tele): 34
• Recognize distance (wide): 12
• Night vision: Yes
• Night vision distance: 40
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 2592 x 1944
• Total megapixels: 5
• Video compression formats: H.264/H.265/M-JPEG
• Video recording: Yes
• Frame rate: 30
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Gain control type: Auto
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness/White balance
• Text caption overlay: Yes
• Audio system: 2-way
• Audio system full duplex: Yes
• Built-in microphone: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• RAM capacity: 2048
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Terminal block port: Yes
• DC-in jack: Yes
• Network access storage (NAS): Yes
• Video motion detection: Yes
• Cloud-managed: Yes
• Power source type: DC,PoE
• Power consumption (typical): 4.7
• Power consumption (max): 12.6
• DC output voltage: 12
• DC output current: 0.025
• Operating temperature (T-T): -40 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Weight: 850
• Number of cameras: 1
• Mounting kit: Yes
• Manual: Yes
• Unit Calculated Volume: 0.00663
• Unit Calculated Weight: 1.2
