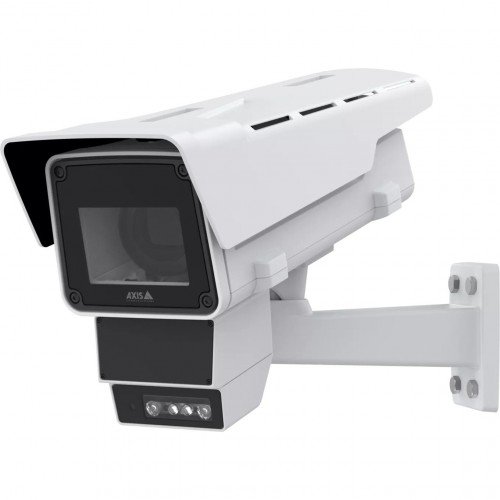

NET CAMERA Q1686-DLE BOX/02968-001 AXIS

Technical Specifications

• Summary: Axis Q1686-DLE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Box. Lens viewing angle, horizontal: 46°, Lens viewing angle, vertical: 26°, Camera shutter speed: 1/47500 - 1 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 9 - 50 mm, Closest focusing distance: 3 m
• Vendor Homepage: https://www.axis.com/products/axis-q1686-dle
• Name: NET CAMERA Q1686-DLE BOX/02968-001 AXIS
• Category Code: FNC
• Form factor: Box
• Mounting type: Ceiling/Wall/Pole
• Product colour: Black/White
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Luminous flux: 0.01
• Lens viewing angle, horizontal: 46
• Lens viewing angle, vertical: 26
• Camera shutter speed: 1/47500 - 1
• Optical sensor size: 1/1.8
• Sensor type: CMOS
• Focal length range: 9 - 50
• Auto focus: Yes
• Maximum aperture number: 1.5
• Closest focusing distance: 3
• Night vision: Yes
• Maximum resolution: 2688 x 1512
• Total megapixels: 4
• Video compression formats: H.264/H.265
• Frame rate: 60
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Image stabilizer: Yes
• Signal-to-Noise Ratio (SNR): 55
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS9 , HTTP/ 2, TLS9 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• Internal memory: 2048
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• DC-in jack: Yes
• Active tampering alarm: Yes
• Detection distance: 50
• Privacy protection: Yes
• Security algorithms: 802.1x RADIUS/EAP-TLS/HTTPS/PEAP
• Power source type: PoE,DC
• Power consumption (typical): 9.5
• Power consumption (max): 25.5
• Power consumption (Power over Ethernet (PoE)): 10
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Weight: 5100
• Number of cameras: 1
