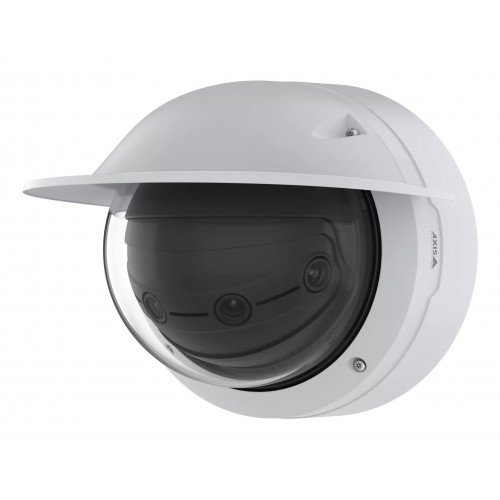

NET CAMERA Q3839-PVE29MP/02657-001 AXIS

Technical Specifications

• Summary: Axis Q3839-PVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
• Vendor Homepage: https://www.axis.com/products/axis-q3839-pve
• Name: NET CAMERA Q3839-PVE29MP/02657-001 AXIS
• Category Code: FNC
• Model: Q3839-PVE
• Form factor: Dome
• Mounting type: Wall/Pole
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Built-in processor: Yes
• Processor model: ARTPEC-8
• Dynamic range: 120
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.03
• Lens viewing angle, horizontal: 180
• Lens viewing angle, vertical: 90
• Tilt angle range: 30 - 88
• Pan range: -176 - 176
• Camera pixel size: 2
• Camera shutter speed: 1/8500 - 1/5
• Sensor type (panoramic camera): CMOS
• Signal-to-Noise Ratio (SNR) (panoramic camera): 55
• Number of sensors: 4
• Optical sensor size: 1/1.8
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Detect distance: 88.3
• Observe distance: 35
• Recognize distance: 17.7
• Lens diameter: 4.6
• Fixed focus: Yes
• Identify distance: 8.8
• Maximum aperture number: 1.8
• Night vision: Yes
• LED type: IR
• Maximum resolution: 7552 x 3776
• Total megapixels: 29
• Video compression formats: H.264/H.265/M-JPEG
• Video recording: Yes
• Frame rate: 30
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Gain control type: Auto
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness/White balance
• Text caption overlay: Yes
• Audio system: 1-way
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• RAM capacity: 4096
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Terminal block port: Yes
• DC-in jack: Yes
• Active tampering alarm: Yes
• Network access storage (NAS): Yes
• Video motion detection: Yes
• Cloud-managed: Yes
• Power source type: DC,PoE
• Power consumption (typical): 9.74
• Power consumption (max): 19.1
• DC output voltage: 12
• DC output current: 0.05
• Operating temperature (T-T): -40 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Weight: 3320
• Number of cameras: 1
• Mounting kit: Yes
• Drilling template included: Yes
• Manual: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0245
• Unit Calculated Weight: 4.4
