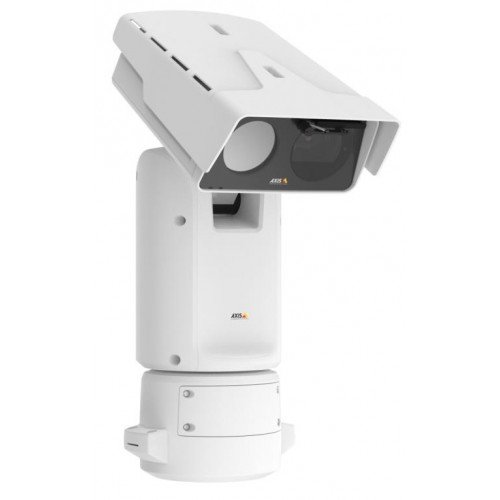

NET CAMERA Q8752-E PTZ/30FPS 01838-001 AXIS

Technical Specifications

• Summary: Axis 01838-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Box, Housing material: Aluminium. Minimum illumination: 0.01 lx, Field of view (FOV) angle (thermal module): 17 x 12.8°, Lens viewing angle, horizontal: 58.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Effective sensor resolution (thermal module): 640 x 480 pixels. Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
• Vendor Homepage: https://www.axis.com/en-tr/products/axis-q8752-e/
• Name: NET CAMERA Q8752-E PTZ/30FPS 01838-001 AXIS
• Category Code: FNC
• Form factor: Box
• Product colour: Black/White
• Housing material: Aluminium
• International Protection (IP) code: IP66
• IK code: IK10
• Weatherproof: Yes
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Preset points: Yes
• Thermal module: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
• Number of languages: 12
• Thermal sensitivity (NETD): 50
• Certification: 55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, VCCI Class A ITE, ICES-3(A)/NMB-3(A), CISPR 35, RCM AS/NZS CISPR 32 Class A, EN 50121-4, IEC 62236-4, EN 50498, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 6095
• Minimum illumination: 0.01
• Field of view (FOV) angle (thermal module): 17 x 12.8
• Lens viewing angle, horizontal: 58.5
• Lens viewing angle, vertical: 35
• Tilt angle range: -90 - 45
• Tilt speed: 65
• Pan range: 0 - 360
• Pan speed: 120
• Camera shutter speed: 1/66500 - 2
• Optical sensor size: 1/2.8
• Effective sensor resolution (thermal module): 640 x 480
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 32
• Digital zoom: 12
• Focal length range: 4.3 - 137.6
• Auto focus: Yes
• Maximum aperture number: 4
• Minimum aperture number: 1.4
• Aperture number (thermal module): 1.6
• Maximum resolution: 1920 x 1080
• Video compression formats: H.264/H.265/M-JPEG/MPEG4
• Supported video modes: 1080p
• Frame rate: 60
• Video streaming: Yes
• Image quality adjustment: Brightness/Contrast/Sharpness
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio formats supported: AAC-LC/ADPCM/G.711/LPCM/PCM
• Ethernet LAN: Yes
• Networking standards: IEEE 802.1x
• Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT v3.1.1
• Quality of Service (QoS) support: Yes
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 512
• Internal memory: 2048
• Ethernet LAN (RJ-45) ports: 1
• Terminal block port: Yes
• Password protection: Yes
• Alert notification type: E-mail
• HTTPS encryption: Yes
• IP address filtering: Yes
• Video motion detection: Yes
• Power source type: AC,DC
• AC input voltage: 20 - 28
• Power consumption (typical): 16
• Power consumption (max): 204
• Operating temperature (T-T): -40 - 65
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 100
• Width: 244
• Depth: 360
• Height: 582
• Sun shield included: Yes
• Manual: Yes
• Doesnt contain: PVC
• Harmonized System (HS) code: 85258900
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.1339
• Unit Calculated Weight: 17.9
