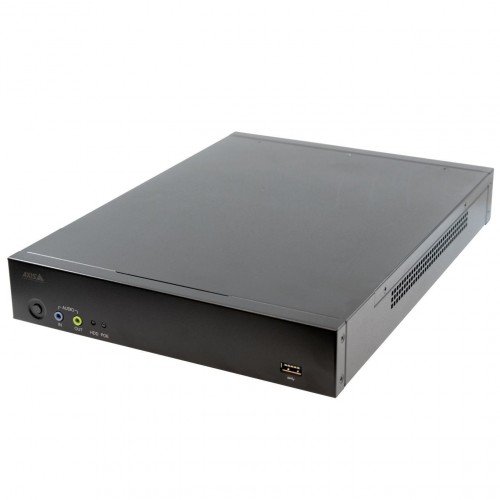

02403-002

Technical Specifications

• Summary: Axis 02403-002. Video input channels: 8 channels, Maximum resolution: 1920 x 1080 pixels, Number of simultaneously playbacked channels: 9 channels. HDD capacity: 2 TB, Total installed storage capacity: 2 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Brand compatibility: Axis, LED indicators: HDD, PoE, Product colour: Black. Power consumption (max): 30 W, Power consumption (typical): 27 W, AC input voltage: 100 - 240 V
• Vendor Homepage: https://www.axis.com/products/axis-s2108
• Name: NET CAMERA STATION S2108/02403-002 AXIS
• Category Code: NVR
• Model: S2108
• Model name: 02403-002
• Video input channels: 8
• Number of simultaneously playbacked channels: 9
• Video recording modes: 1080p/720p
• Maximum resolution: 1920 x 1080
• Internal memory: 8192
• Operating system installed: Windows 10 IoT Enterprise
• Number of HDDs installed: 1
• HDD capacity: 2000
• Number of HDDs supported: 1
• Total installed storage capacity: 2000
• Ethernet LAN (RJ-45) ports: 10
• Ethernet LAN data rates: 10/100/1000
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 8
• HDMI ports quantity: 1
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• Audio output: 1
• Line-in: Yes
• Networking standards: IEEE 802.3at
• Brand compatibility: Axis
• LED indicators: HDD/PoE
• Product colour: Black
• Built-in processor: Yes
• Power consumption (max): 30
• Power consumption (typical): 27
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Output current: 2.3
• Power: 180
• Operating temperature (T-T): 0 - 40
• Operating relative humidity (H-H): 10 - 90
• Storage relative humidity (H-H): 10 - 90
• Compliance certificates: RoHS
• Width: 310
• Depth: 230
• Height: 44
• Weight: 3500
• AC adapter included: Yes
• Cables included: AC
• Quick installation guide: Yes
• Unit Calculated Volume: 0.018
• Unit Calculated Weight: 3.9
