RB1100AHx4

RB1100AHx4
RB1100AHx4
  • Ethernet LAN data rates: 10/100/1000
  • Ethernet LAN (RJ-45) ports: 13
  • Processor cores: 4
  • Internal memory: 1000
Врз основа на 0 коментари. - Напиши коментар
19,919ден.
  • Достапност:
  • Бренд: MIKROTIK
  • Шифра: 304660
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Mikrotik RB1100AHx4. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Cables included: AC. Processor model: Annapurna Labs Alpine AL21400, Processor frequency: 1400 MHz, Storage media: Flash. Product colour: Stainless steel, Rack capacity: 1U, LED indicators: Activity, Fault. Power consumption (typical): 20 W, Power source type: AC, DC, PoE, AC input voltage: 100 - 240 V
  • Vendor Homepage: https://mikrotik.com/product/rb1100ahx4#fndtn-specifications
  • Name: NET ROUTER 10/100/1000M 13PORT/RB1100X4 MIKROTIK
  • Category Code: ROU
  • Product model code: RB1100AHx4
  • Ethernet WAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN: Yes
  • Cabling technology: 10/100/1000Base-T(X)
  • Ethernet LAN data rates: 10/100/1000
  • Throughput: 7.5
  • Web-based management: Yes
  • Firmware upgradeable: Yes
  • Ethernet LAN (RJ-45) ports: 13
  • RS-232 ports: 1
  • DC-in jack: Yes
  • IP address filtering: Yes
  • Cables included: AC
  • Built-in processor: Yes
  • Processor model: Annapurna Labs Alpine AL21400
  • Processor frequency: 1400
  • Processor cores: 4
  • Storage media: Flash
  • Flash memory: 128
  • Internal memory: 1000
  • Compatible memory cards: MicroSD (TransFlash)
  • Temperature monitoring: Yes
  • Voltage monitoring: Yes
  • Operating system installed: RouterOS
  • Product colour: Stainless steel
  • Rack mounting: Yes
  • Rack capacity: 1U
  • LED indicators: Activity/Fault
  • Antenna type: Not supported
  • Power consumption (typical): 20
  • Power source type: AC,DC,PoE
  • AC input voltage: 100 - 240
  • Power over Ethernet (PoE): Yes
  • Operating temperature (T-T): -40 - 70
  • Width: 444
  • Depth: 148
  • Height: 47
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.006486
  • Unit Calculated Weight: 1.8
Specifications
AC input voltage100 - 240
Built-in processorYes
Cables includedAC
Cabling technology10/100/1000Base-T(X)
Compatible memory cardsMicroSD (TransFlash)
DC-in jackYes
Depth148
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports13
Ethernet LAN data rates10/100/1000
Ethernet WANYes
Firmware upgradeableYes
Flash memory128
Harmonized System (HS) code85176990
Height47
Internal memory1000
IP address filteringYes
LED indicatorsActivity/Fault
Operating system installedRouterOS
Operating temperature (T-T)-40 - 70
Power consumption (typical)20
Power over Ethernet (PoE)Yes
Power source typeAC,DC,PoE
Processor cores4
Processor frequency1400
Processor modelAnnapurna Labs Alpine AL21400
Product colourStainless steel
Rack capacity1U
Rack mountingYes
RS-232 ports1
Storage mediaFlash
SummaryMikrotik RB1100AHx4. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Cables included: AC. Processor model: Annapurna Labs Alpine AL21400, Processor frequency: 1400 MHz, Storage media: Flash. Product colour: Stainless steel, Rack capacity: 1U, LED indicators: Activity, Fault. Power consumption (typical): 20 W, Power source type: AC, DC, PoE, AC input voltage: 100 - 240 V
Temperature monitoringYes
Throughput7.5
Voltage monitoringYes
Web-based managementYes
Width444
Specs
Antenna TypeNot supported
Category CodeROU
Description

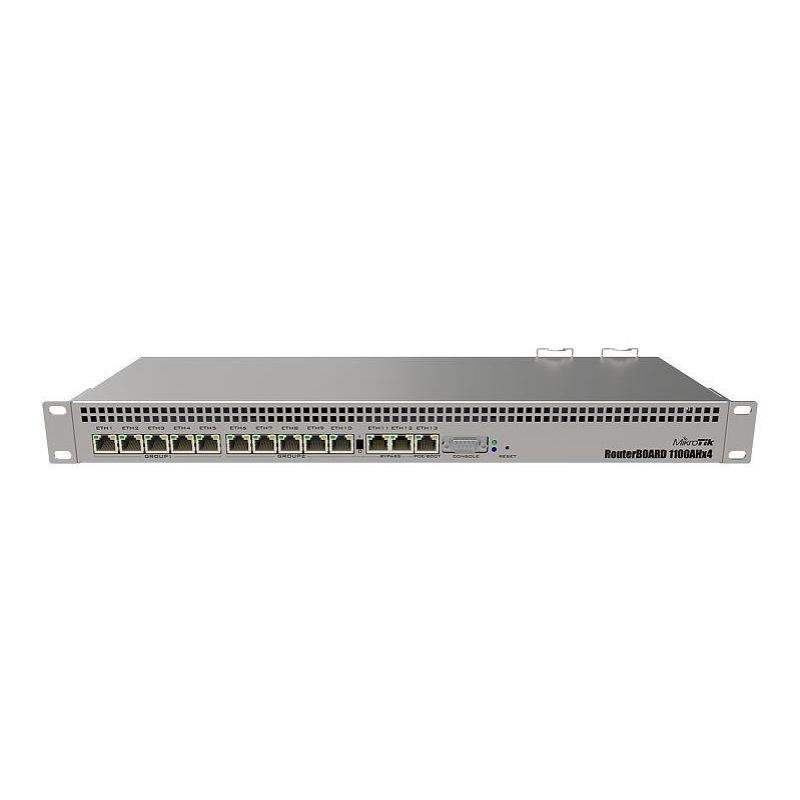

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

NameNET ROUTER 10/100/1000M 13PORT/RB1100X4 MIKROTIK
PictureUrlhttps://static.elko.cloud/ProductImages/efae706e-29c5-4dbc-81b4-d338b8556ceb.Jpeg
Product model codeRB1100AHx4
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/efae706e-29c5-4dbc-81b4-d338b8556ceb.Jpeg
Unit Calculated Volume0.006486
Unit Calculated Weight1.8
Units per Shipping Box1
Vendor Homepagehttps://mikrotik.com/product/rb1100ahx4#fndtn-specifications
