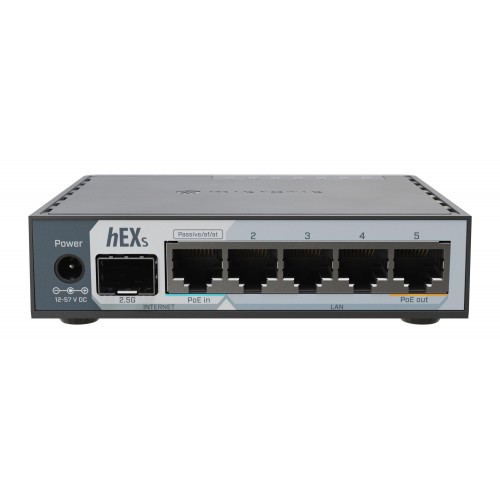

hEX S

Technical Specifications

• Summary: Mikrotik E60IUGS. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. USB version: 3.2 Gen 1 (3.1 Gen 1). Compliance certificates: CE, EAC, RoHS. Processor frequency: 950 MHz, Flash memory: 128 MB, Internal memory: 512 MB. Product colour: Black
• Vendor Homepage: https://mikrotik.com/product/hex_s_2025#fndtn-specifications
• Name: NET ROUTER/SWITCH 5PORT 1000M/HEX S E60IUGS MIKROTIK
• Category Code: ROU
• Model: hEX S
• Ethernet WAN: Yes
• SFP WAN: Yes
• Networking standards: IEEE 802.3af/IEEE 802.3at
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN data rates: 10/100/1000/2500
• Ethernet LAN (RJ-45) ports: 5
• SFP module slots quantity: 1
• USB ports quantity: 1
• USB version: 3.2 Gen 1 (3.1 Gen 1)
• DC-in jack: Yes
• AC adapter included: Yes
• Compliance certificates: CE/EAC/RoHS
• Built-in processor: Yes
• Processor frequency: 950
• Processor cores: 2
• Flash memory: 128
• Internal memory: 512
• Internal memory type: DDR3
• Operating system installed: RouterOS
• Product colour: Black
• Wall mountable: Yes
• Power source type: DC,PoE
• Output voltage: 24
• Output current: 1.2
• Power over Ethernet (PoE): Yes
• Operating temperature (T-T): -40 - 70
• Units per Pallet: 0
• Units per Shipping Box: 20
• Unit Calculated Volume: 0.0013
• Unit Calculated Weight: 0.45
