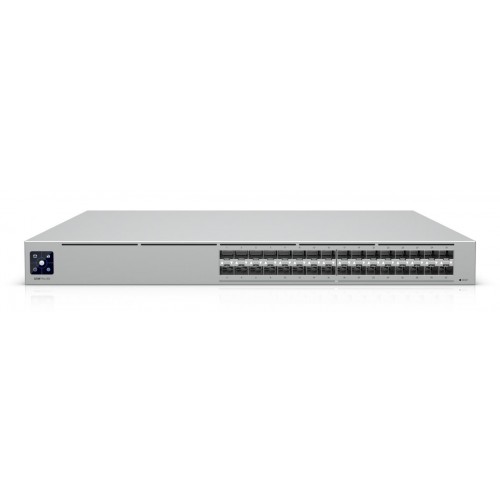

USW-Pro-XG-Aggregation

Technical Specifications

• Summary: Ubiquiti UniFi Pro XG Aggregation. Switch type: Managed, Switch layer: L2/L3. MAC address table: 32000 entries, Switching capacity: 1600 Gbit/s. Power connector: AC/DC. Rack mounting, Form factor: 1U
• Vendor Homepage: https://eu.store.ui.com/eu/en/category/switching-aggregation/products/usw-pro-xg-aggregation
• Name: NET SWITCH PRO XG AGGREGATION/USW-PRO-XG-AGGREGATIO UBIQUITI
• Category Code: SWI
• Model: USW-Pro-XG-Aggregation
• Model name: Pro XG Aggregation
• Switch type: Managed
• Switch layer: L2/L3
• Quality of Service (QoS) support: Yes
• SFP28 ports quantity: 32
• Power connector: AC/DC
• 10G support: Yes
• Port mirroring: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• IPv4 routes: 256000
• Rate limiting: Yes
• VLAN support: Yes
• Virtual LAN features: Interface-based VLAN/Voice VLAN
• Number of VLANs: 1000
• Switching capacity: 1600
• Throughput: 800
• Forwarding rate: 1200
• MAC address table: 32000
• Static route: Yes
• Jumbo frames support: Yes
• Packet buffer memory: 8
• DHCP features: DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
• IGMP snooping: Yes
• Loop protection: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Stackable: Yes
• Form factor: 1U
• Product colour: Grey
• Housing material: SGCC
• Reset button: Yes
• Backlight display: Yes
• Display type: LCM
• Power source: AC/DC
• Power supply included: Yes
• Redundant power supply (RPS) support: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power consumption (max): 200
• Operating temperature (T-T): -5 - 40
• Operating relative humidity (H-H): 10 - 90
• Width: 442.4
• Depth: 480
• Height: 43.7
• Weight: 7000
• Cables included: Power
• Rack mount kit: Yes
• Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.1063
• Unit Calculated Weight: 13
