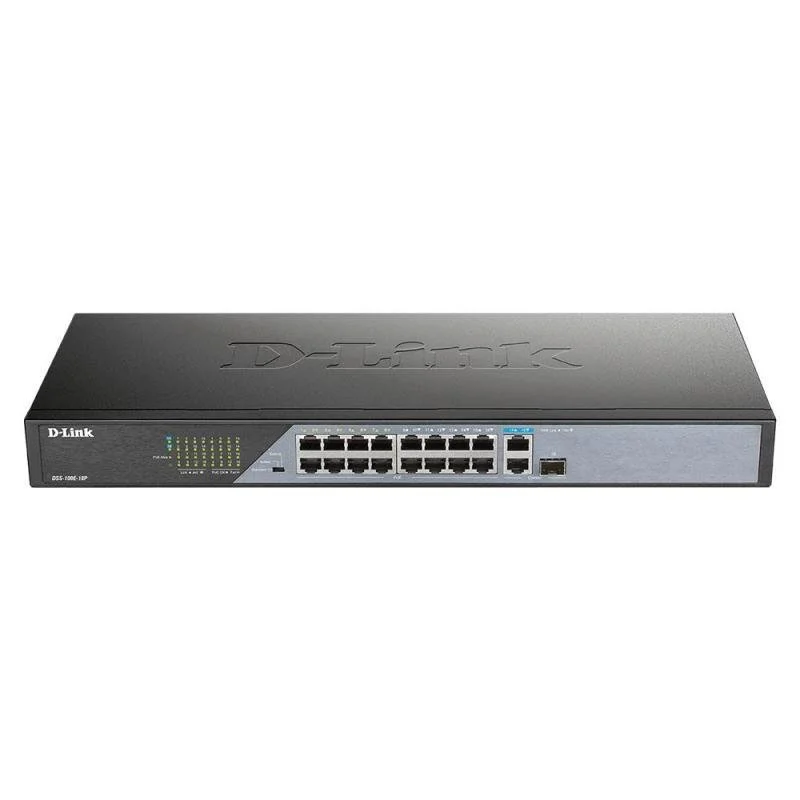

NET SWITCH 18PORT 10/100M/DSS-100E-18P D-LINK

Technical Specifications

• Summary: D-Link DSS-100E-18P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 4000 entries, Switching capacity: 7.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE)
• Vendor Homepage: https://www.dlink.com/en/products/dss-100e-18p-18-port-10100base-tx-poe-unmanaged-surveillance-switch
• Name: NET SWITCH 18PORT 10/100M/DSS-100E-18P D-LINK
• Category Code: SWI
• Model name: DSS-100E-18P
• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
• Gigabit Ethernet (copper) ports quantity: 1
• Combo SFP ports quantity: 1
• Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Auto MDI/MDI-X: Yes
• Switching capacity: 7.2
• Forwarding rate: 5.36
• MAC address table: 4000
• Store-and-forward: Yes
• Packet buffer memory: 0.352
• Product colour: Black
• LED indicators: Activity/Link/PoE/Power/Speed
• Number of fans: 1
• Mean time between failures (MTBF): 30000
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 265
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 16
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 230
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 0 - 95
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 120
• Width: 440
• Depth: 178
• Height: 44
• Weight: 2137
• Certification: IEC61000-4-5 CE, RoHS, C-Tick
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01165
• Unit Calculated Weight: 3
