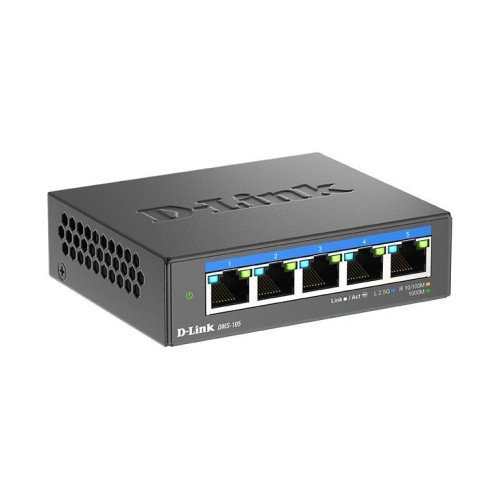

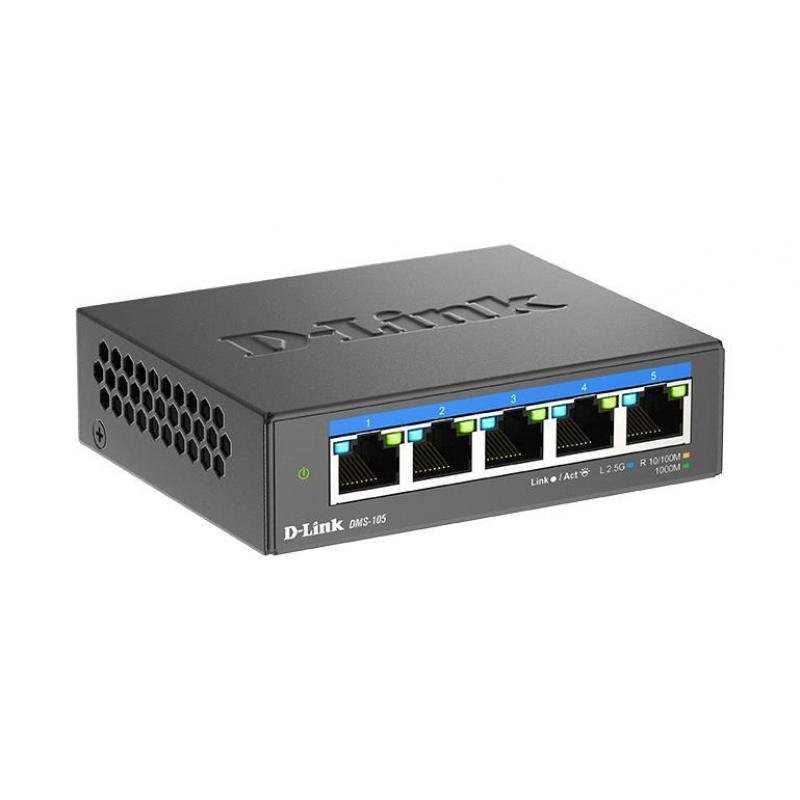

NET SWITCH 5PORT 2.5GE/DMS-105/E D-LINK

Technical Specifications

• Summary: D-Link 5-Port 2.5G Multi-Gigabit Desktop Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V
• Vendor Homepage: https://www.dlink.com/en/products/dms-105-5-port-multi-gigabit-unmanaged-switch
• Name: NET SWITCH 5PORT 2.5GE/DMS-105/E D-LINK
• Category Code: SWI
• Model name: DMS-105
• Switch type: Unmanaged
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
• 2.5G Ethernet (copper) ports quantity: 5
• Networking standards: IEEE 802.1p/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3x
• Auto MDI/MDI-X: Yes
• Flow control support: Yes
• MAC address auto-learning supported: Yes
• Switching capacity: 25
• Forwarding rate: 18.6
• MAC address table: 4000
• Store-and-forward: Yes
• Packet buffer memory: 8.1
• IGMP snooping: Yes
• Multicast support: Yes
• Stackable: Yes
• Product colour: Black
• LED indicators: Activity/Link/Power
• Fanless: Yes
• Mean time between failures (MTBF): 765190
• Power source: DC
• Power supply included: Yes
• DC input voltage: 12
• Input current: 1
• Power consumption (typical): 4.918
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -10 - 70
• Operating relative humidity (H-H): 10 - 90
• Storage relative humidity (H-H): 5 - 90
• Heat dissipation: 16.78
• Width: 100.5
• Depth: 82
• Height: 28
• Weight: 238.6
• Sustainability compliance: Yes
• Compliance certificates: BSMI/CE/Low Voltage Directive (LVD)/RoHS
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001045
• Unit Calculated Weight: 0.3
