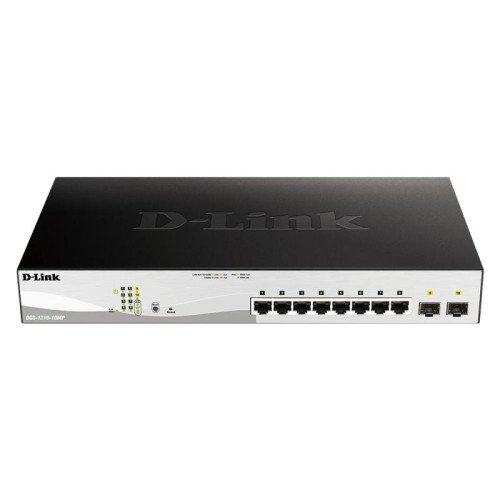

NET SWITCH 10PORT 10/100/1000/2SFP DGS-1210-10MP/E D-LINK

Technical Specifications

• Summary: D-Link DGS-1210-10MP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE)
• Vendor Homepage: https://www.dlink.com/uk/en/products/dgs-1210-series-gigabit-smart-plus-switches
• Name: NET SWITCH 10PORT 10/100/1000/2SFP DGS-1210-10MP/E D-LINK
• Category Code: SWI
• Model name: DGS-1210-10MP/E
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Installed SFP modules quantity: 2
• Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Port mirroring: Yes
• Full duplex: Yes
• Half duplex: Yes
• Auto MDI/MDI-X: Yes
• Broadcast storm control: Yes
• Ethernet LAN data rates: 10,100,1000
• Flow control support: Yes
• Head-of-line (HOL) blocking: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Number of VLANs: 256
• Switching capacity: 20
• Forwarding rate: 14.88
• MAC address table: 8000
• Static route: Yes
• Number of static routes: 256
• Jumbo frames support: Yes
• Jumbo frames: 10000
• Packet buffer memory: 4.1
• IGMP snooping: Yes
• Loop protection: Yes
• Product colour: Black/Grey
• LED indicators: Yes
• Internal memory: 128
• Flash memory: 32
• Mean time between failures (MTBF): 1274005
• Power source: AC
• Power supply included: Yes
• Number of power supply units: 1
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power consumption (max): 9.4
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 8
• Total Power over Ethernet (PoE) budget: 130
• Operating temperature (T-T): -5 - 50
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 0 - 95
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 507.23
• Width: 330
• Depth: 180
• Height: 44
• Weight: 1770
• Sustainability compliance: Yes
• Compliance certificates: BSMI/CB/CCC/cUL
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01152
• Unit Calculated Weight: 3
