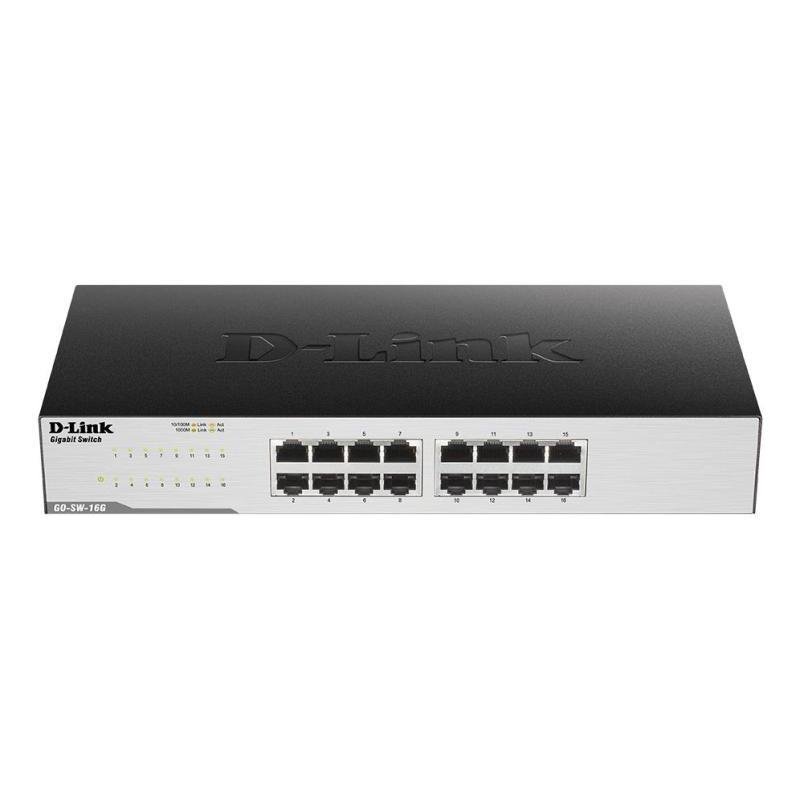

NET SWITCH 16PORT 1000M/UNMANAGED GO-SW-16G D-LINK

NET SWITCH 16PORT 1000M/UNMANAGED GO-SW-16G D-LINK
NET SWITCH 16PORT 1000M/UNMANAGED GO-SW-16G D-LINK
  • Switch type: Unmanaged
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Switching capacity: 32
Врз основа на 0 коментари. - Напиши коментар
4,773ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 187161
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: D-Link GO-SW-16G. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Power connector: DC-in jack. Rack mounting, Form factor: 1U
  • Vendor Homepage: https://eu.dlink.com/uk/en/products/go-sw-16g-24g-16-24-port-gigabit-unmanaged-desktop-switch#support
  • Name: NET SWITCH 16PORT 1000M/UNMANAGED GO-SW-16G D-LINK
  • Category Code: SWI
  • Switch type: Unmanaged
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 16
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Ethernet LAN data rates: 10,100,1000
  • Flow control support: Yes
  • Switching capacity: 32
  • Forwarding rate: 23.81
  • MAC address table: 8000
  • Store-and-forward: Yes
  • Number of queues: 8
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Packet buffer memory: 0.512
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Number of fans: 0
  • Mean time between failures (MTBF): 305171
  • Power supply included: Yes
  • Number of power supply units: 1
  • DC input voltage: 12
  • Input current: 1
  • Power consumption (max): 11.7
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Heat dissipation: 39.92
  • Width: 280
  • Depth: 126
  • Height: 44
  • Weight: 870
  • Package width: 180
  • Package depth: 328
  • Package height: 108
  • Package weight: 1450
  • Master (outer) cases per pallet (air): 30
  • Master (outer) cases per pallet (sea): 30
  • Pallet gross length: 1100
  • Pallet gross weight (air): 491500
  • Pallet gross weight (sea): 491500
  • Pallet gross width: 1200
  • Pallet height (air): 2055
  • Pallet height (sea): 2055
  • Products per pallet (air): 300
  • Products per pallet (sea): 300
  • Products per shipping (inner) case: 10
  • Shipping (inner) case gross weight: 15550
  • Shipping (inner) case height: 384
  • Shipping (inner) case length: 569
  • Shipping (inner) case net weight: 15000
  • Shipping (inner) case width: 340
  • Certification: CE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00594
  • Unit Calculated Weight: 1
Specifications
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
DC input voltage12
Depth126
Ethernet LAN data rates10,100,1000
Flow control supportYes
Form factor1U
Full duplexYes
Gigabit Ethernet (copper) ports quantity16
Half duplexYes
Harmonized System (HS) code85176990
Heat dissipation39.92
Height44
Housing materialMetal
Input current1
Jumbo frames9216
Jumbo frames supportYes
LED indicatorsYes
MAC address table8000
Master (outer) cases per pallet (air)30
Master (outer) cases per pallet (sea)30
Mean time between failures (MTBF)305171
Networking standardsIEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Number of fans0
Number of power supply units1
Number of queues8
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Package depth328
Package height108
Package weight1450
Package width180
Packet buffer memory0.512
Pallet gross length1100
Pallet gross weight (air)491500
Pallet gross weight (sea)491500
Pallet gross width1200
Pallet height (air)2055
Pallet height (sea)2055
Power connectorDC-in jack
Power consumption (max)11.7
Power supply includedYes
Product colourBlack
Products per pallet (air)300
Products per pallet (sea)300
Products per shipping (inner) case10
Quality of Service (QoS) supportYes
Rack mountingYes
Shipping (inner) case gross weight15550
Shipping (inner) case height384
Shipping (inner) case length569
Shipping (inner) case net weight15000
Shipping (inner) case width340
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 70
Store-and-forwardYes
SummaryD-Link GO-SW-16G. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Switch layerL2
Weight870
Width280
Specs
Auto-negotiationYes
Category CodeSWI
Description

The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Upgrade to Gigabit Networking

With data transfer speeds of up to 2000 Mbps at full-duplex, this switch is ideal for quick file transfers, online gaming, and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you are ready to go.

Conserve Energy

The GO-SW-16G/24G supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimises power usage for each port based on the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

The GO-SW-16G/24G is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Forwarding rate23.81
NameNET SWITCH 16PORT 1000M/UNMANAGED GO-SW-16G D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/da5d6951-032d-450e-9d71-07489e0b73b9.Jpeg
Switch typeUnmanaged
Switching capacity32
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/da5d6951-032d-450e-9d71-07489e0b73b9.Jpeg
Unit Calculated Volume0.00594
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://eu.dlink.com/uk/en/products/go-sw-16g-24g-16-24-port-gigabit-unmanaged-desktop-switch#support
