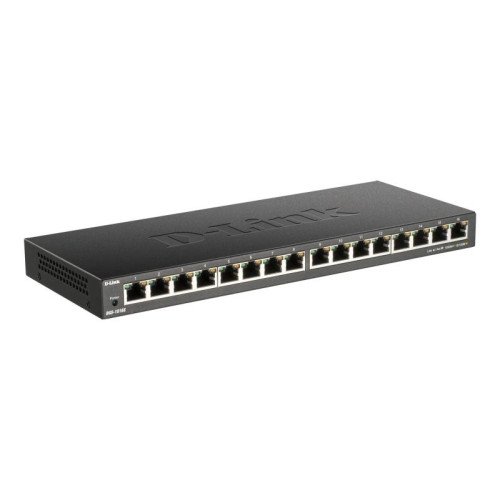

DGS-1016S

Technical Specifications

• Summary: D-Link DGS-1016S. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x. DC input voltage: 12 V
• Vendor Homepage: https://www.dlink.com/en/products/dgs-1016s-16-port-gigabit-desktop-switch
• Name: NET SWITCH 16PORT 1000T/DGS-1016S D-LINK
• Category Code: SWI
• Model: DGS-1016S
• Switch type: Unmanaged
• Quality of Service (QoS) support: Yes
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Networking standards: IEEE 802.1p/IEEE 802.3az/IEEE 802.3x
• Copper ethernet cabling technology: 1000BASE-T
• Full duplex: Yes
• Half duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Cable length detection: Yes
• Flow control support: Yes
• Switching capacity: 32
• MAC address table: 8000
• Store-and-forward: Yes
• Number of queues: 8
• Jumbo frames support: Yes
• Jumbo frames: 9216
• Packet forwarding rate (1 Gbps): 1488000
• Packet forwarding rate (10 Mbps): 14880
• Packet forwarding rate (100 Mbps): 148800
• Packet buffer memory: 0.512
• Product colour: Black
• LED indicators: Activity/Link/Power/Speed
• Fanless: Yes
• Mean time between failures (MTBF): 564658
• DC input voltage: 12
• Input current: 1
• Power consumption (max): 8.89
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 90
• Storage relative humidity (H-H): 5 - 95
• Heat dissipation: 30.32
• Width: 280
• Depth: 110
• Height: 25
• Weight: 770
• Certification: CE, FCC, ICES 003, RCM
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.003675
• Unit Calculated Weight: 0.9
