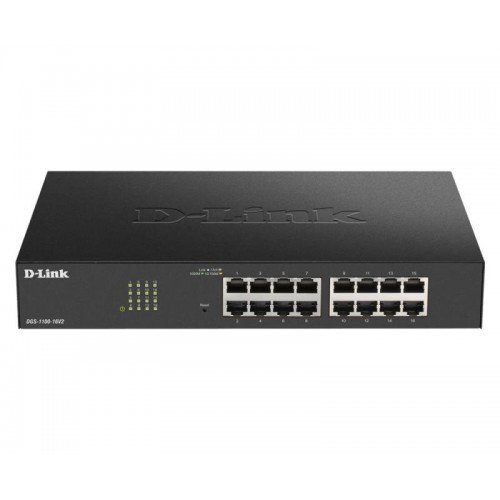

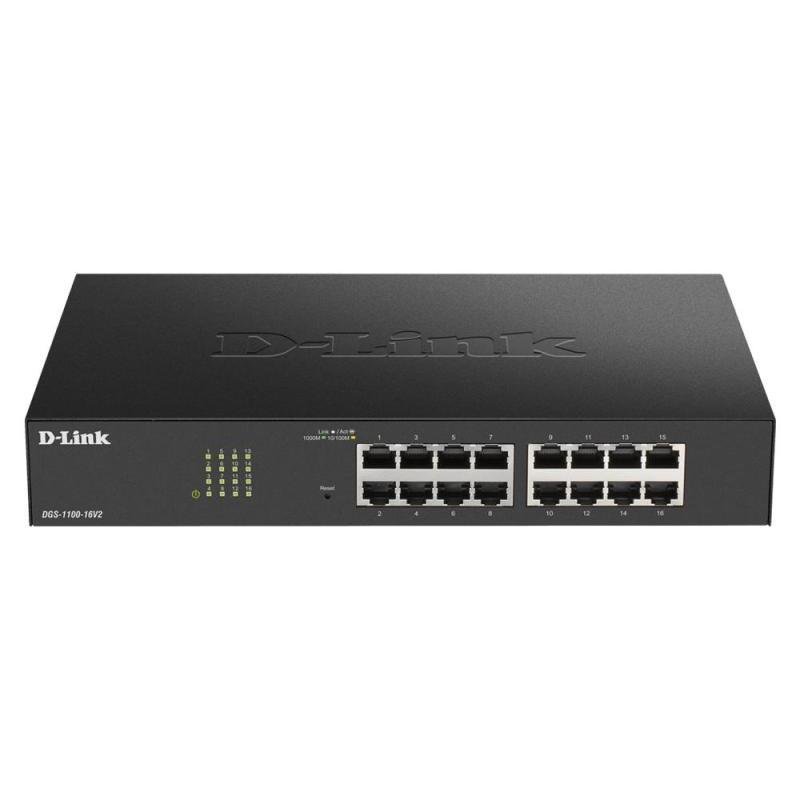

NET SWITCH 16PORT 10/100/1000/POE DGS-1100-16V2 D-LINK

NET SWITCH 16PORT 10/100/1000/POE DGS-1100-16V2 D-LINK
NET SWITCH 16PORT 10/100/1000/POE DGS-1100-16V2 D-LINK
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Switching capacity: 32
10,020ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 331760
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
1

Technical Specifications

  • Summary: D-Link 16-Port Gigabit Smart Managed Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting
  • Vendor Homepage: https://www.dlink.com/en/products/dgs-1100-16v2-16-port-gigabit-smart-managed-switch
  • Name: NET SWITCH 16PORT 10/100/1000/POE DGS-1100-16V2 D-LINK
  • Category Code: SWI
  • Model name: DGS-1100-16V2
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Copper ethernet cabling technology: 1000BASE-T/10BASE-T/10BASE-TX
  • Port mirroring: Yes
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Broadcast storm control: Yes
  • Ethernet LAN data rates: 10,100,1000
  • Flow control support: Yes
  • Head-of-line (HOL) blocking: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN/Voice VLAN
  • Number of VLANs: 128
  • Switching capacity: 32
  • Forwarding rate: 23.81
  • MAC address table: 8000
  • Store-and-forward: Yes
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Packet buffer memory: 4.1
  • DHCP features: DHCP client
  • IGMP snooping: Yes
  • Queue scheduling algorithms: SPQ/Weighted Round Robin (WRR)
  • Security algorithms: SNMP/SSL/TLS
  • Multicast support: Yes
  • Rack mounting: Yes
  • Product colour: Black
  • LED indicators: Yes
  • Built-in processor: Yes
  • Processor frequency: 125
  • Memory type: DRAM
  • Flash memory: 16
  • Noise level: 0
  • Fanless: Yes
  • Mean time between failures (MTBF): 710519
  • AC input voltage: 100 - 240
  • Power consumption (max): 10.1
  • Operating temperature (T-T): -5 - 50
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 0 - 95
  • Storage relative humidity (H-H): 0 - 95
  • Operating altitude: 0 - 2000
  • Heat dissipation: 34.46
  • Width: 280
  • Depth: 180
  • Height: 44
  • Weight: 1270
  • Certification: EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01265
  • Unit Calculated Weight: 2.2
Specifications
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Built-in processorYes
CertificationEMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
Copper ethernet cabling technology1000BASE-T/10BASE-T/10BASE-TX
Depth180
DHCP featuresDHCP client
Ethernet LAN data rates10,100,1000
FanlessYes
Flash memory16
Flow control supportYes
Full duplexYes
Harmonized System (HS) code85176990
Head-of-line (HOL) blockingYes
Heat dissipation34.46
Height44
IGMP snoopingYes
Jumbo frames9216
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address table8000
Mean time between failures (MTBF)710519
Memory typeDRAM
Multicast supportYes
Networking standardsIEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Noise level0
Number of queues4
Number of VLANs128
Operating altitude0 - 2000
Operating relative humidity (H-H)0 - 95
Operating temperature (T-T)-5 - 50
Packet buffer memory4.1
Port mirroringYes
Power consumption (max)10.1
Processor frequency125
Product colourBlack
Quality of Service (QoS) supportYes
Queue scheduling algorithmsSPQ/Weighted Round Robin (WRR)
Rack mountingYes
Rate limitingYes
Security algorithmsSNMP/SSL/TLS
Spanning tree protocolYes
Storage relative humidity (H-H)0 - 95
Storage temperature (T-T)-40 - 70
Store-and-forwardYes
SummaryD-Link 16-Port Gigabit Smart Managed Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting
Switch layerL2
System event logYes
Virtual LAN featuresPort-based VLAN/Voice VLAN
VLAN supportYes
Web-based managementYes
Weight1270
Width280
Specs
Auto-negotiationYes
Category CodeSWI
Description

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Gigabit Ethernet Speeds
Take your Ethernet speeds to the next level with Gigabit Connectivity

Cutting Edge Green Technology
Innovative D-Link Green power saving features keep your budget in check

Manage Anywhere, Anytime
Remote setup & management is easy, and can be done from anywhere.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

  • Fanless design for silent operation
  • Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
  • Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
  • Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
  • IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
  • Innovative energy saving features are good for your budget, as well as the environment
  • Get up and going quickly with streamlined first-time setup and ongoing management

Forwarding rate23.81
Model nameDGS-1100-16V2
NameNET SWITCH 16PORT 10/100/1000/POE DGS-1100-16V2 D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/1d3dd3d1-1e7c-4366-91ea-fb80ae1e6230.Jpeg
Switch typeManaged
Switching capacity32
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/1d3dd3d1-1e7c-4366-91ea-fb80ae1e6230.Jpeg
Unit Calculated Volume0.01265
Unit Calculated Weight2.2
Units per Shipping Box1
Vendor Homepagehttps://www.dlink.com/en/products/dgs-1100-16v2-16-port-gigabit-smart-managed-switch
