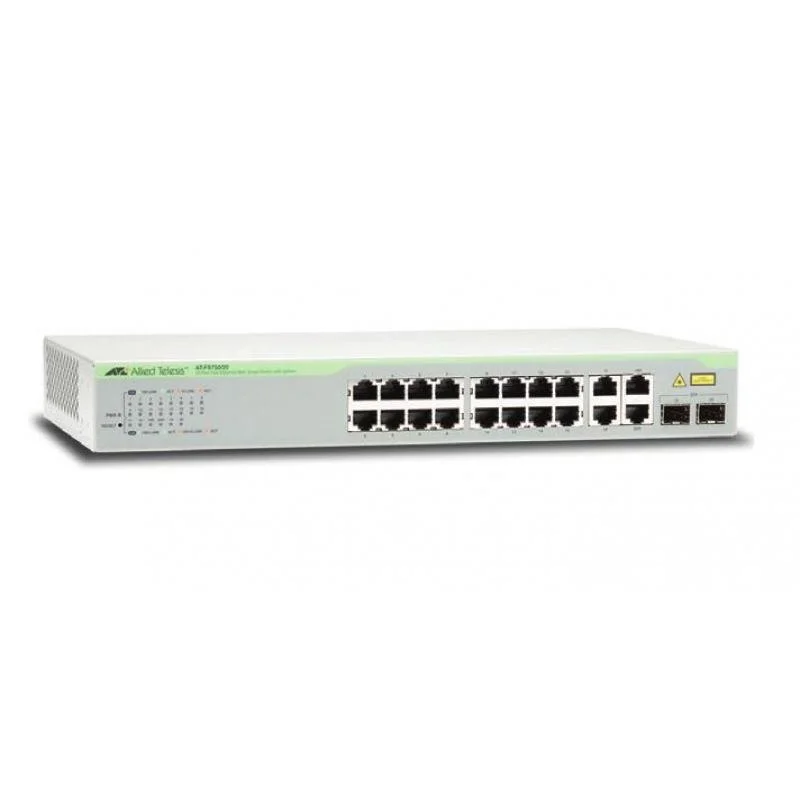

NET SWITCH 16PORT 10/100M TX/WEBSMART AT-FS750/20-50 ALLIED

NET SWITCH 16PORT 10/100M TX/WEBSMART AT-FS750/20-50 ALLIED
NET SWITCH 16PORT 10/100M TX/WEBSMART AT-FS750/20-50 ALLIED
  • Switch type: Managed
  • Basic switching RJ-45 Ethernet ports quantity: 20
  • Switching capacity: 11.2
Врз основа на 0 коментари. - Напиши коментар
14,741ден.
  • Достапност:
  • Бренд: ALLIED
  • Шифра: 212156
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Allied Telesis AT-FS750/20-50. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 20. MAC address table: 8000 entries, Switching capacity: 11.2 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
  • Vendor Homepage: https://www.alliedtelesis.com/products/fs75020
  • Name: NET SWITCH 16PORT 10/100M TX/WEBSMART AT-FS750/20-50 ALLIED
  • Category Code: SWI
  • Switch type: Managed
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • System event log: Yes
  • MIB support: RFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB
  • Basic switching RJ-45 Ethernet ports quantity: 20
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Fast Ethernet (copper) ports quantity: 16
  • Gigabit Ethernet (copper) ports quantity: 2
  • Combo SFP ports quantity: 2
  • Networking standards: IEEE 802.11d/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Port mirroring: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Head-of-line (HOL) blocking: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • Virtual LAN features: Port-based VLAN/Tagged VLAN
  • Switching capacity: 11.2
  • MAC address table: 8000
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Packet forwarding rate (1 Gbps): 1488000
  • Packet forwarding rate (10 Mbps): 14880
  • Packet forwarding rate (100 Mbps): 148800
  • DHCP features: DHCP client
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Authentication: MAC-based authentication
  • MAC address filtering: Yes
  • Multicast support: Yes
  • Number of multicast groups filtered: 256
  • Management protocols: FTP, HTTP, SNMPv1/v2c/v3, SNTP
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Grey
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (max): 7.6
  • Operating temperature (T-T): 0 - 40
  • Width: 330
  • Depth: 180
  • Height: 44
  • Weight: 2200
  • Cables included: AC
  • Harmonized System (HS) code: 85176990
  • Unit Calculated Volume: 0.032472
  • Unit Calculated Weight: 3.2
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Access Control List (ACL)Yes
AuthenticationMAC-based authentication
Basic switching RJ-45 Ethernet ports quantity20
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Broadcast storm controlYes
Cables includedAC
Combo SFP ports quantity2
Depth180
DHCP featuresDHCP client
Fast Ethernet (copper) ports quantity16
Flow control supportYes
Form factor1U
Gigabit Ethernet (copper) ports quantity2
Harmonized System (HS) code85176990
Head-of-line (HOL) blockingYes
Height44
IGMP snoopingYes
Jumbo frames supportYes
Link aggregationYes
MAC address filteringYes
MAC address table8000
Management protocolsFTP, HTTP, SNMPv1/v2c/v3, SNTP
MIB supportRFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB
Multicast supportYes
Networking standardsIEEE 802.11d/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of multicast groups filtered256
Number of queues4
Operating temperature (T-T)0 - 40
Packet forwarding rate (1 Gbps)1488000
Packet forwarding rate (10 Mbps)14880
Packet forwarding rate (100 Mbps)148800
Port mirroringYes
Power consumption (max)7.6
Product colourGrey
Quality of Service (QoS) supportYes
Rack mountingYes
Rate limitingYes
Spanning tree protocolYes
SummaryAllied Telesis AT-FS750/20-50. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 20. MAC address table: 8000 entries, Switching capacity: 11.2 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
System event logYes
Virtual LAN featuresPort-based VLAN/Tagged VLAN
Web-based managementYes
Weight2200
Width330
Specs
Category CodeSWI
Description

These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution.

NameNET SWITCH 16PORT 10/100M TX/WEBSMART AT-FS750/20-50 ALLIED
PictureUrlhttps://static.elko.cloud/ProductImages/f622bf3c-bb25-4ba3-b50e-3cdd19bcb515.Jpeg
Switch typeManaged
Switching capacity11.2
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/f622bf3c-bb25-4ba3-b50e-3cdd19bcb515.Jpeg
Unit Calculated Volume0.032472
Unit Calculated Weight3.2
Vendor Homepagehttps://www.alliedtelesis.com/products/fs75020
