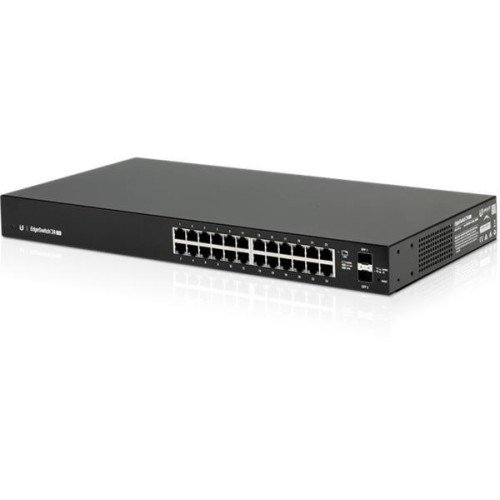

NET SWITCH 24PORT 1000M 2SFP/ES-24-LITE UBIQUITI

Technical Specifications

• Summary: Ubiquiti EdgeSwitch 24 Lite. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.15.1, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... DC input voltage: 16 - 25 V. Wall mountable, Rack mounting, Form factor: 1U
• Vendor Homepage: https://eu.store.ui.com/collections/routing-switching/products/edgeswitch-24-lite?_pos=1&_sid=1409cbd95&_ss=r
• Name: NET SWITCH 24PORT 1000M 2SFP/ES-24-LITE UBIQUITI
• Category Code: SWI
• Switch type: Managed
• Switch layer: L2/L3
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 24
• SFP module slots quantity: 2
• Console port: RJ-45
• Networking standards: IEEE 802.15.1/IEEE 802.1ab/IEEE 802.1ak/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• 10G support: Yes
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Half duplex: Yes
• Broadcast storm control: Yes
• Ethernet LAN data rates: 10,100,1000
• Flow control support: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: Private VLAN/Tagged VLAN/Voice VLAN
• Switching capacity: 52
• Forwarding rate: 38.69
• Jumbo frames support: Yes
• DHCP features: DHCP server/DHCP snooping
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• Authentication: Guest VLAN,Port-based authentication
• Authentication type: IEEE 802.1x,RADIUS
• MAC address filtering: Yes
• Security algorithms: 802.1x RADIUS/SSH-1.5/SSH-2/SSL/TLS
• Multicast support: Yes
• Management protocols: SNMP v1/v2/v3, Telnet
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Black
• LED indicators: Activity/Link/Speed
• Wall mountable: Yes
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• DC input voltage: 16 - 25
• Power consumption (max): 25
• Operating temperature (T-T): -5 - 40
• Operating relative humidity (H-H): 5 - 95
• Width: 443
• Depth: 221
• Height: 43
• Weight: 2510
• Certification: ETSI300-019-1.4 CE, FCC, IC
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009922
• Unit Calculated Weight: 3.27
