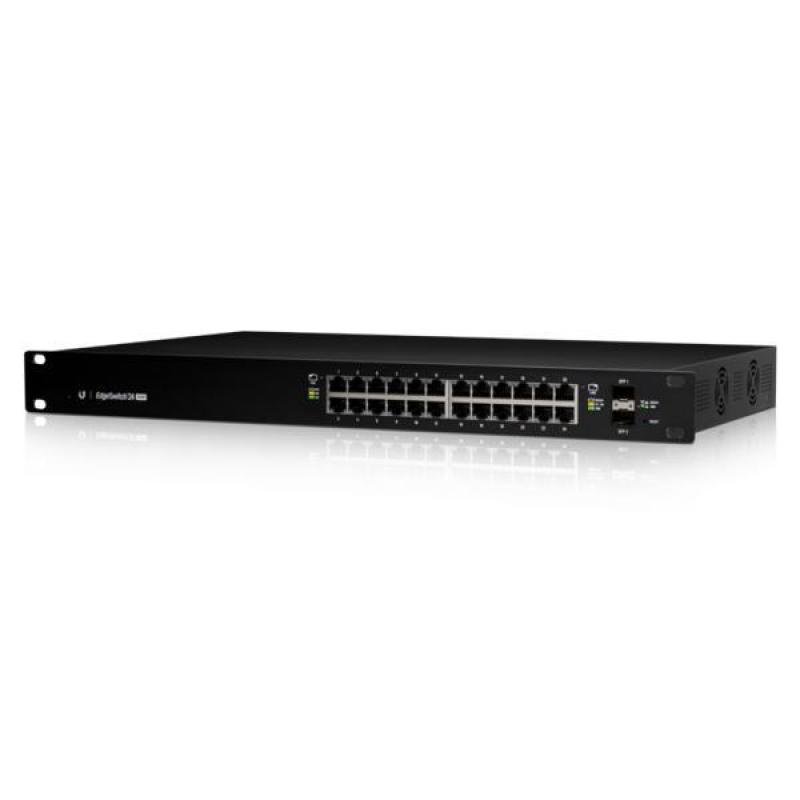

NET SWITCH 24PORT 1000M 2SFP/POE ES-24-250W UBIQUITI

NET SWITCH 24PORT 1000M 2SFP/POE ES-24-250W UBIQUITI
NET SWITCH 24PORT 1000M 2SFP/POE ES-24-250W UBIQUITI
  • Switch type: Managed
  • Switch layer: L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • SFP module slots quantity: 2
  • Switching capacity: 52
Врз основа на 0 коментари. - Напиши коментар
29,959ден.
  • Достапност:
  • Бренд: UBIQUITI
  • Шифра: 197485
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Ubiquiti EdgeSwitch 24 250W. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16384 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Vendor Homepage: https://ubiquitistore.com.au/product/ubiquiti-edgeswitch-managed-poe-giga-switch-24-port-250w-es-24-250w-au/
  • Name: NET SWITCH 24PORT 1000M 2SFP/POE ES-24-250W UBIQUITI
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • SFP module slots quantity: 2
  • Console port: RJ-45
  • Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto-sensing: Yes
  • Broadcast storm control: Yes
  • Ethernet LAN data rates: 10,100,1000
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: Private VLAN/Tagged VLAN/Voice VLAN
  • Number of VLANs: 4093
  • Switching capacity: 52
  • Forwarding rate: 38.69
  • MAC address table: 16384
  • Number of queues: 8
  • Static route: Yes
  • Jumbo frames support: Yes
  • DHCP features: DHCP server/DHCP snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Authentication: Guest VLAN,Port-based authentication
  • Authentication type: IEEE 802.1x,RADIUS
  • MAC address filtering: Yes
  • Security algorithms: SSH-1.5/SSH-2/SSL/TLS
  • Multicast support: Yes
  • Management protocols: SNMP v1/v2/v3, Telnet
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Activity/Link/PoE/Speed
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (max): 250
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) type supported: Active PoE/Passive PoE
  • Power over Ethernet (PoE) power per port: 34.2
  • Operating temperature (T-T): -5 - 40
  • Operating relative humidity (H-H): 5 - 95
  • Width: 485
  • Depth: 285.4
  • Height: 43.7
  • Weight: 4700
  • Certification: ETSI300-019-1.4 CE, FCC, IC
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01546
  • Unit Calculated Weight: 5.7
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Access Control List (ACL)Yes
AuthenticationGuest VLAN,Port-based authentication
Authentication typeIEEE 802.1x,RADIUS
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
CertificationETSI300-019-1.4 CE, FCC, IC
Configuring Location Settings (CLI)Yes
Console portRJ-45
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Depth285.4
DHCP featuresDHCP server/DHCP snooping
Ethernet LAN data rates10,100,1000
Flow control supportYes
Form factor1U
Full duplexYes
Gigabit Ethernet (copper) ports quantity24
Half duplexYes
Harmonized System (HS) code85176990
Height43.7
IGMP snoopingYes
Jumbo frames supportYes
LED indicatorsActivity/Link/PoE/Speed
Link aggregationYes
MAC address filteringYes
MAC address table16384
Management protocolsSNMP v1/v2/v3, Telnet
Multicast supportYes
Networking standardsIEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of queues8
Number of VLANs4093
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)-5 - 40
Port mirroringYes
Power consumption (max)250
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port34.2
Power over Ethernet (PoE) type supportedActive PoE/Passive PoE
Power supply includedYes
Product colourBlack
Quality of Service (QoS) supportYes
Rack mountingYes
Security algorithmsSSH-1.5/SSH-2/SSL/TLS
SFP module slots quantity2
Spanning tree protocolYes
Static routeYes
SummaryUbiquiti EdgeSwitch 24 250W. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16384 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Switch layerL2/L3
System event logYes
Virtual LAN featuresPrivate VLAN/Tagged VLAN/Voice VLAN
VLAN supportYes
Web-based managementYes
Weight4700
Width485
Specs
Category CodeSWI
Description

The Ubiquiti Rackmount EdgeSwitch 24 250W ES-24-250W delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

  • (24) Gigabit RJ45 Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 26 Gbps
  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 38.69 Mpps
  • Maximum Power Consumption: 250W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable
