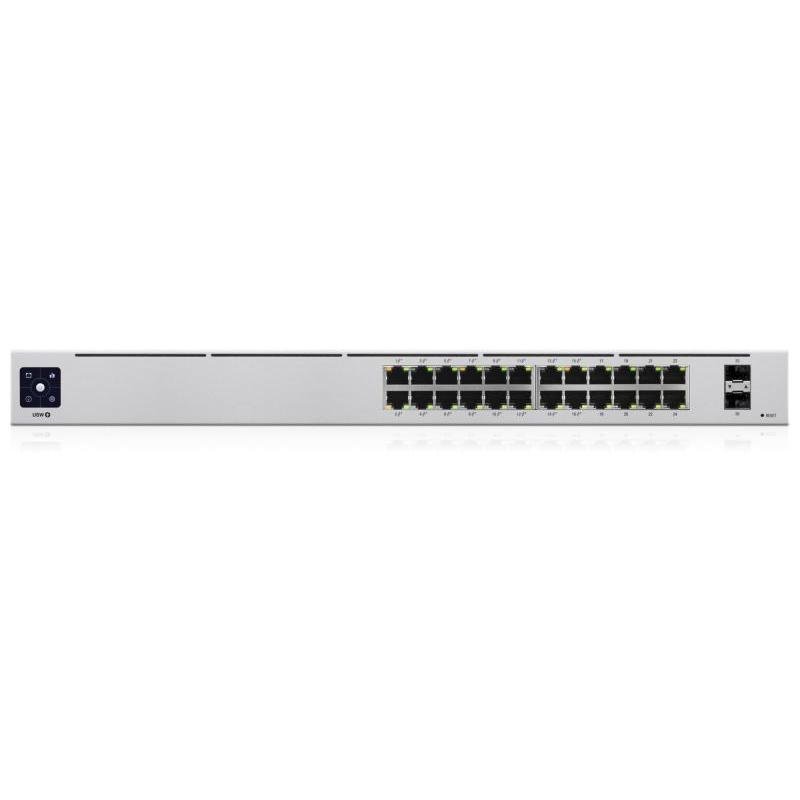

NET SWITCH 24PORT 1000M 2SFP/POE USW-24-POE UBIQUITI

Technical Specifications

• Summary: Ubiquiti UniFi 24-Port PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 44 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
• Vendor Homepage: https://switch.ui.com/gen2/
• Name: NET SWITCH 24PORT 1000M 2SFP/POE USW-24-POE UBIQUITI
• Category Code: SWI
• Model name: USW-24-POE
• Switch type: Managed
• Switch layer: L2/L3
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 2
• Networking standards: IEEE 802.3af/IEEE 802.3at
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Flow control support: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Switching capacity: 52
• Throughput: 26000
• Forwarding rate: 38.69
• Static route: Yes
• Jumbo frames support: Yes
• Authentication type: IEEE 802.1x,RADIUS
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Silver
• LED indicators: Activity/Link/PoE/Speed/System
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• DC input voltage: 44 - 57
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 16
• Power over Ethernet (PoE) power per port: 32
• Total Power over Ethernet (PoE) budget: 92
• Operating temperature (T-T): -5 - 40
• Operating relative humidity (H-H): 10 - 90
• Width: 442.4
• Depth: 200
• Height: 43.7
• Weight: 3000
• Certification: CE, FCC, IC
• Harmonized System (HS) code: 85176990
• Units per Pallet: 0
• Units per Shipping Box: 2
• Unit Calculated Volume: 0.02446
• Unit Calculated Weight: 4.57
