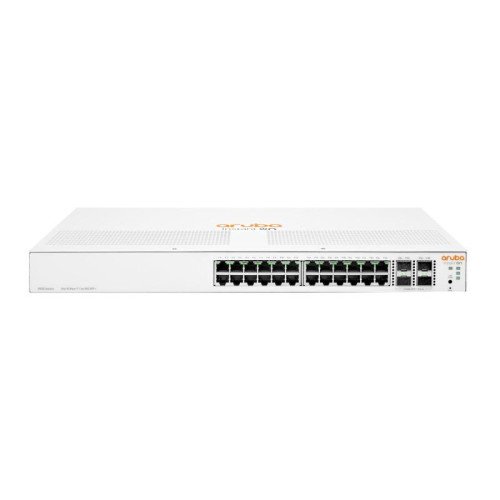

NET SWITCH 24PORT 1000M 4SFP+/ION 1930 JL683B ARUBA BY HPE

Technical Specifications

• Summary: HPE Aruba Networking Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Qaz, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
• Vendor Homepage: https://buy.hpe.com/uk/en/networking/switches/fixed-port-web-managed-ethernet-switches/aruba-1900-switch-products/aruba-instant-on-1930-24g-class4-poe-4sfp-sfp-195w-switch/p/jl683b
• Name: NET SWITCH 24PORT 1000M 4SFP+/ION 1930 JL683B ARUBA BY HPE
• Category Code: SWI
• Switch type: Managed
• Switch layer: L2+
• Quality of Service (QoS) support: Yes
• Cloud-managed: Yes
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 4
• Networking standards: IEEE 802.1ab/IEEE 802.1D/IEEE 802.1Qaz/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• 10G support: Yes
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-sensing: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Rate limiting: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Switching capacity: 128
• Throughput: 95.23
• MAC address table: 16000
• Latency (10-100 Mbps): 4.7
• Latency (1 Gbps): 2.4
• Latency (10 Gbps): 1.3
• Jumbo frames support: Yes
• Packet buffer memory: 1.5
• DHCP features: DHCP client
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• SSH/SSL support: Yes
• Rack mounting: Yes
• Form factor: 1U
• Product colour: White
• Built-in processor: Yes
• Processor model: ARM Cortex-A9
• Processor frequency: 800
• Memory type: SDRAM / Flash
• Internal memory: 512
• Flash memory: 256
• Power source: AC
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 280
• Power over Ethernet (PoE): Yes
• Total Power over Ethernet (PoE) budget: 195
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 15 - 95
• Storage relative humidity (H-H): 15 - 95
• Operating altitude: 0 - 3048
• Width: 442.5
• Depth: 264.7
• Height: 43.9
• Weight: 3490
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.024
• Unit Calculated Weight: 5
