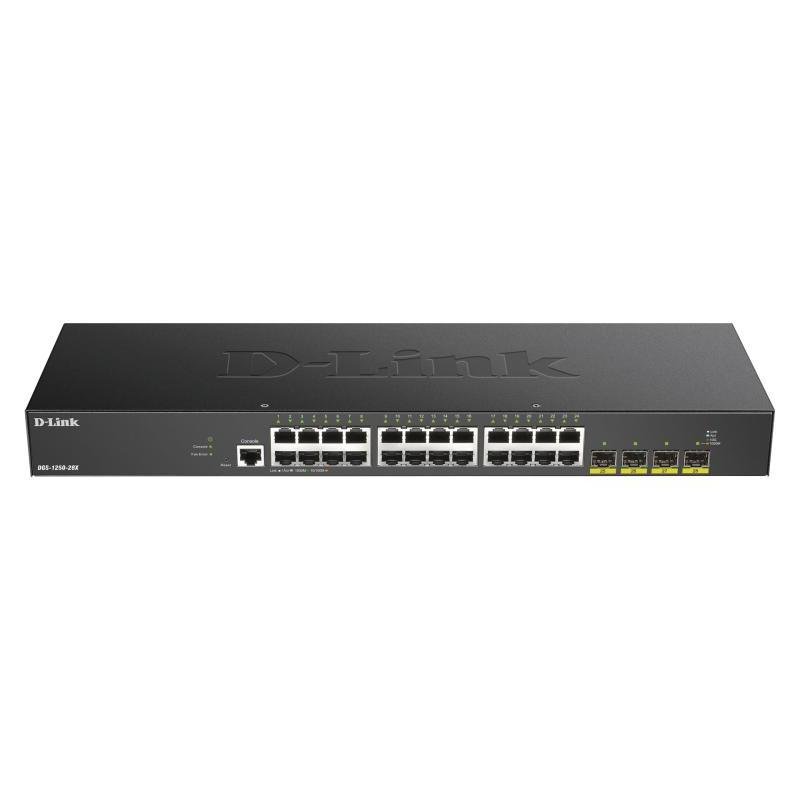

NET SWITCH 24PORT 1000M SFP+/DGS-1250-28X/E D-LINK

NET SWITCH 24PORT 1000M SFP+/DGS-1250-28X/E D-LINK
NET SWITCH 24PORT 1000M SFP+/DGS-1250-28X/E D-LINK
  • Switch type: Managed
  • Switch layer: L3
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Switching capacity: 128
Врз основа на 0 коментари. - Напиши коментар
29,762ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 378252
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: D-Link 24-port Gigabit Smart Managed Switch with 4x 10G SFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting
  • Vendor Homepage: https://www.dlink.com/en/products/dgs-1250-28x-28-port-smart-managed-switch-with-10-gigabit-uplinks
  • Name: NET SWITCH 24PORT 1000M SFP+/DGS-1250-28X/E D-LINK
  • Category Code: SWI
  • Model name: DGS-1250-28X/E
  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • MIB support: RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650,
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • Console port: RJ-45
  • Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • 10G support: Yes
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Cable types supported: Cat5/Cat5e
  • Port mirroring: Yes
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Head-of-line (HOL) blocking: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: Voice VLAN
  • Number of VLANs: 4094
  • Fiber ethernet cabling technology: 1000BASE-LHX/1000BASE-LX/1000BASE-SX/1000BASE-X/1000BASE-ZX/100BASE-FX
  • Switching capacity: 128
  • Forwarding rate: 95.24
  • MAC address table: 16000
  • Store-and-forward: Yes
  • Static route: Yes
  • Number of static routes: 124
  • Jumbo frames support: Yes
  • Jumbo frames: 12000
  • Packet buffer memory: 12
  • DHCP features: DHCP client/DHCP server/DHCP snooping
  • Access Control List (ACL): Yes
  • Access Control List (ACL) rules: 768
  • IGMP snooping: Yes
  • IP-MAC-Port binding: Yes
  • Loop protection: Yes
  • Queue scheduling algorithms: Weighted Round Robin (WRR)
  • Security algorithms: EAP/MD5/PEAP/SSH/SSL/TLS/TTLS
  • Multicast support: Yes
  • Rack mounting: Yes
  • Product colour: Black
  • LED indicators: Activity/Link/Power/Speed
  • Electromagnetic compatibility: CE A, VCCI A, FCC A, IC, BSMI
  • Memory type: DDR3-SDRAM
  • Internal memory: 2048
  • Flash memory: 64
  • Firmware upgradeable: Yes
  • Noise level: 47.6
  • Mean time between failures (MTBF): 743482.45
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • Power consumption (max): 30.6
  • Operating temperature (T-T): -5 - 50
  • Storage temperature (T-T): -20 - 70
  • Operating relative humidity (H-H): 0 - 95
  • Storage relative humidity (H-H): 0 - 95
  • Heat dissipation: 104.346
  • Width: 440
  • Depth: 140
  • Height: 44
  • Weight: 3860
  • Package width: 282
  • Package depth: 563
  • Package height: 89
  • Package weight: 2966
  • Certification: CB, UL, BSMI, CCC
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01436
  • Unit Calculated Weight: 2.6
Specifications
10G supportYes
AC input voltage100 - 240
Access Control List (ACL)Yes
Access Control List (ACL) rules768
ARP inspectionYes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Cable types supportedCat5/Cat5e
CertificationCB, UL, BSMI, CCC
Configuring Location Settings (CLI)Yes
Console portRJ-45
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Depth140
DHCP featuresDHCP client/DHCP server/DHCP snooping
Electromagnetic compatibilityCE A, VCCI A, FCC A, IC, BSMI
Fiber ethernet cabling technology1000BASE-LHX/1000BASE-LX/1000BASE-SX/1000BASE-X/1000BASE-ZX/100BASE-FX
Firmware upgradeableYes
Flash memory64
Flow control supportYes
Full duplexYes
Head-of-line (HOL) blockingYes
Heat dissipation104.346
Height44
IGMP snoopingYes
Internal memory2048
IP-MAC-Port bindingYes
Jumbo frames12000
Jumbo frames supportYes
LED indicatorsActivity/Link/Power/Speed
Link aggregationYes
Loop protectionYes
MAC address table16000
Mean time between failures (MTBF)743482.45
Memory typeDDR3-SDRAM
MIB supportRFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650,
Multicast supportYes
Networking standardsIEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Noise level47.6
Number of static routes124
Number of VLANs4094
Operating relative humidity (H-H)0 - 95
Operating temperature (T-T)-5 - 50
Package depth563
Package height89
Package weight2966
Package width282
Packet buffer memory12
Port mirroringYes
Power consumption (max)30.6
Power supply includedYes
Product colourBlack
Quality of Service (QoS) supportYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
Rack mountingYes
Security algorithmsEAP/MD5/PEAP/SSH/SSL/TLS/TTLS
SFP+ module slots quantity4
Spanning tree protocolYes
Static routeYes
Storage relative humidity (H-H)0 - 95
Storage temperature (T-T)-20 - 70
Store-and-forwardYes
SummaryD-Link 24-port Gigabit Smart Managed Switch with 4x 10G SFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting
Switch layerL3
System event logYes
Virtual LAN featuresVoice VLAN
VLAN supportYes
Web-based managementYes
Weight3860
Width440
Specs
Category CodeSWI
Description

Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.

The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.

Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.

Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.

Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.

  • 24 x 10/100/1000BASE-T ports
  • 4 x 10G SFP+ ports
  • Lite L3 Static Routing
  • Advanced security features, IMPB, 802.1X Authentication
  • Dual Image & Configuration
  • Supports STP/RSTP/MSTP
  • Full CLI
  • QoS Enablement
  • 11 Web Languages

Forwarding rate95.24
