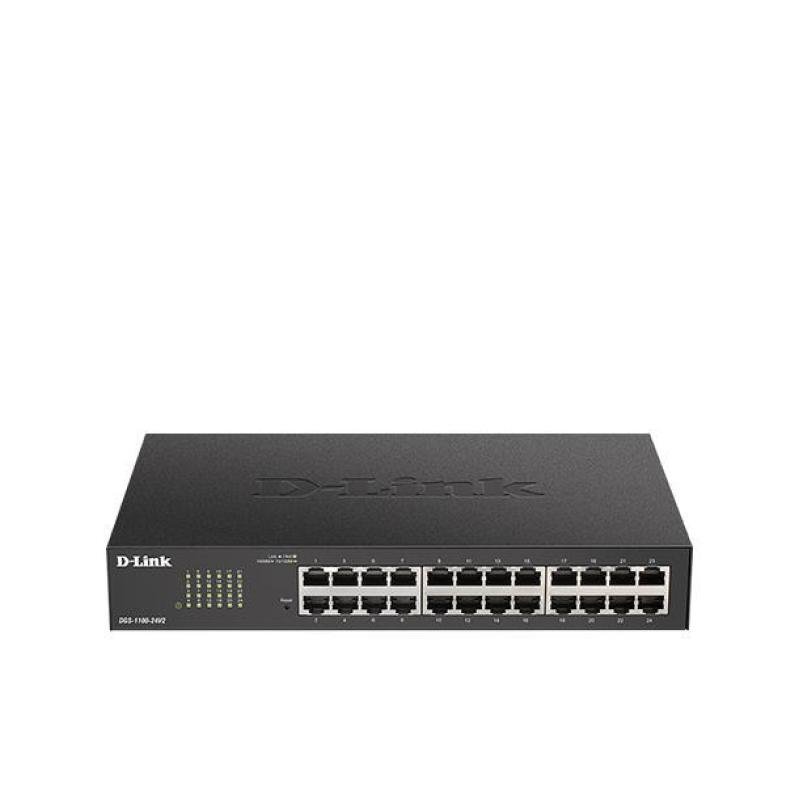

DGS-1100-24V2

DGS-1100-24V2
DGS-1100-24V2
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Switching capacity: 48
Врз основа на 0 коментари. - Напиши коментар
11,661ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 307309
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: D-Link 24-Port Gigabit Smart Managed Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE.... Rack mounting, Form factor: 1U
  • Vendor Homepage: https://ca.dlink.com/en/products/dgs-1100-24v2-24-port-gigabit-smart-managed-switch
  • Name: NET SWITCH 24PORT 1000M/DGS-1100-24V2 D-LINK
  • Category Code: SWI
  • Model: DGS-1100-24V2
  • Switch type: Managed
  • Switch layer: L2
  • Web-based management: Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3x
  • Port mirroring: Yes
  • Auto MDI/MDI-X: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Head-of-line (HOL) blocking: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN/Voice VLAN
  • Number of VLANs: 4094
  • Switching capacity: 48
  • Forwarding rate: 35.71
  • MAC address table: 8000
  • Store-and-forward: Yes
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Packet buffer memory: 4.1
  • DHCP features: DHCP client
  • IGMP entries: 64
  • IGMP snooping: Yes
  • Queue scheduling algorithms: SPQ/Weighted Round Robin (WRR)
  • Security algorithms: SNMP/SSL/TLS
  • Multicast support: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Electromagnetic compatibility: FCC A, CE A, VCCI A, C-Tick, BSMI, CCC
  • Built-in processor: Yes
  • Processor frequency: 125
  • Flash memory: 16
  • Noise level: 0
  • Mean time between failures (MTBF): 424762
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (typical): 4.5
  • Power consumption (max): 15.9
  • Operating temperature (T-T): -5 - 50
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 0 - 95
  • Storage relative humidity (H-H): 0 - 95
  • Operating altitude: 0 - 2000
  • Heat dissipation: 54.3
  • Width: 280
  • Depth: 180
  • Height: 44
  • Weight: 1470
  • Rack mount kit: Yes
  • Certification: RoHS 6 cUL, CE LVD, CB, BSMI, CCC
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0028
  • Unit Calculated Weight: 2
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Built-in processorYes
CertificationRoHS 6 cUL, CE LVD, CB, BSMI, CCC
Depth180
DHCP featuresDHCP client
Electromagnetic compatibilityFCC A, CE A, VCCI A, C-Tick, BSMI, CCC
Flash memory16
Flow control supportYes
Form factor1U
Harmonized System (HS) code85176990
Head-of-line (HOL) blockingYes
Heat dissipation54.3
Height44
IGMP entries64
IGMP snoopingYes
Jumbo frames9216
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address table8000
Mean time between failures (MTBF)424762
Multicast supportYes
Networking standardsIEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3x
Noise level0
Number of queues4
Number of VLANs4094
Operating altitude0 - 2000
Operating relative humidity (H-H)0 - 95
Operating temperature (T-T)-5 - 50
Packet buffer memory4.1
Port mirroringYes
Power consumption (max)15.9
Power consumption (typical)4.5
Processor frequency125
Product colourBlack
Queue scheduling algorithmsSPQ/Weighted Round Robin (WRR)
Rack mount kitYes
Rack mountingYes
Rate limitingYes
Security algorithmsSNMP/SSL/TLS
Spanning tree protocolYes
Storage relative humidity (H-H)0 - 95
Storage temperature (T-T)-40 - 70
Store-and-forwardYes
SummaryD-Link 24-Port Gigabit Smart Managed Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE.... Rack mounting, Form factor: 1U
Switch layerL2
System event logYes
Virtual LAN featuresPort-based VLAN/Voice VLAN
VLAN supportYes
Web-based managementYes
Weight1470
Width280
Specs
Category CodeSWI
Description

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

  • 24 x 10/100/1000BASE-T ports
  • Fanless design for silent operation
  • Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
  • Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
  • Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
  • IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
  • Innovative energy saving features are good for your budget, as well as the environment
  • Get up and going quickly with streamlined first-time setup and ongoing management

Forwarding rate35.71
ModelDGS-1100-24V2
NameNET SWITCH 24PORT 1000M/DGS-1100-24V2 D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/e364ccb4-e8ab-4897-83c7-3a8297a62aa8.Jpeg
Switch typeManaged
Switching capacity48
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/e364ccb4-e8ab-4897-83c7-3a8297a62aa8.Jpeg
Unit Calculated Volume0.0028
Unit Calculated Weight2
Units per Shipping Box1
Vendor Homepagehttps://ca.dlink.com/en/products/dgs-1100-24v2-24-port-gigabit-smart-managed-switch
