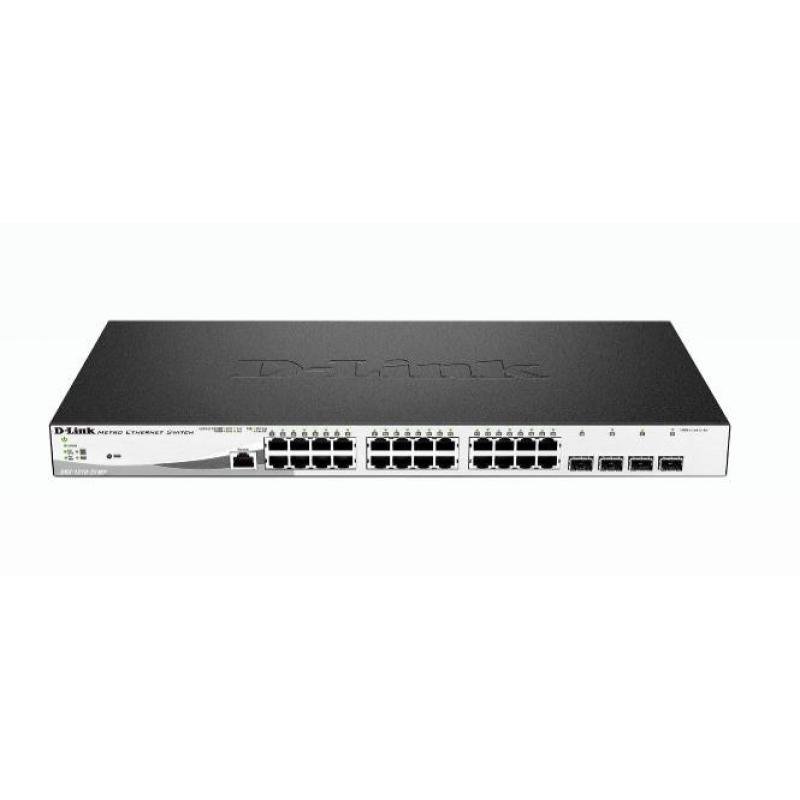

NET SWITCH 24PORT 10/100/1000/POE+ DGS-1210-28MP D-LINK

NET SWITCH 24PORT 10/100/1000/POE+ DGS-1210-28MP D-LINK
NET SWITCH 24PORT 10/100/1000/POE+ DGS-1210-28MP D-LINK
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • SFP module slots quantity: 4
  • Switching capacity: 56
Врз основа на 0 коментари. - Напиши коментар
41,277ден.
  • Достапност: Нема на залиха
  • Шифра: 230975
  • Гарантен рок: 12 месеци
  • Рок на испорака: 13-16 дена
D-LINK
Во кошничка
Листа на желби Спореди
Сподели

Technical Specifications

  • Summary: D-Link 28-Port Gigabit PoE+ Smart Managed Switch including 4 x 100/1000Mbps Combo Ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Vendor Homepage: https://www.dlink.com/uk/en/business-solutions/switching/smart-switches/dgs-1210-series-gigabit-smart-switches
  • Name: NET SWITCH 24PORT 10/100/1000/POE+ DGS-1210-28MP D-LINK
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Traffic classification: Yes
  • System event log: Yes
  • MIB support: RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 4
  • Fiber optic connector: SFP
  • Console port: RJ-45
  • Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1v/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ah/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-T/100BASE-TX/10BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • IP routing: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN/Port-based VLAN/Tagged VLAN/Voice VLAN
  • Number of VLANs: 4094
  • Fiber ethernet cabling technology: 1000BASE-X
  • Switching capacity: 56
  • Forwarding rate: 41.7
  • MAC address table: 16000
  • Store-and-forward: Yes
  • Number of queues: 8
  • Number of static routes: 32
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Packet buffer memory: 1.5
  • DHCP features: DHCP client
  • Access Control List (ACL): Yes
  • Access Control List (ACL) rules: 256
  • IGMP snooping: Yes
  • Authentication: Guest VLAN,MAC-based authentication,Port-based authentication
  • BPDU filtering/protection: Yes
  • IP-MAC-Port binding: Yes
  • Loop protection: Yes
  • Security algorithms: 802.1x RADIUS/SNMP/SSH
  • SSH/SSL support: Yes
  • Multicast support: Yes
  • Multicast Listener Discovery (MLD) snooping: MLD v1, MLD v2
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black/Grey
  • LED indicators: Activity/Fan fail/Link/Power/Speed
  • Number of fans: 2
  • Safety: CCC, CE LVD, UL/cUL
  • Electromagnetic compatibility: FCC A, CE A, VCCI, C-Tick, BSMI, CCC
  • Built-in processor: Yes
  • Memory type: DDR3-SDRAM
  • Internal memory: 128
  • Flash memory: 32
  • Noise level: 52.4
  • Mean time between failures (MTBF): 294101
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (typical): 27.49
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 24
  • Operating temperature (T-T): -5 - 50
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 90
  • Heat dissipation: 850.58
  • Width: 440
  • Depth: 210
  • Height: 44
  • Package width: 365
  • Package depth: 521
  • Package height: 92
  • Package weight: 5184
  • Master (outer) cases per pallet (air): 24
  • Master (outer) cases per pallet (sea): 40
  • Pallet gross length: 1100
  • Pallet gross weight (air): 419652
  • Pallet gross weight (sea): 682920
  • Pallet gross width: 1200
  • Pallet height (air): 1314
  • Pallet height (sea): 2100
  • Products per pallet (air): 72
  • Products per pallet (sea): 120
  • Products per shipping (inner) case: 3
  • Shipping (inner) case gross weight: 16423
  • Shipping (inner) case height: 393
  • Shipping (inner) case length: 539
  • Shipping (inner) case net weight: 15552
  • Shipping (inner) case width: 295
  • Certification: IEC61000-4-5, RoHS
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 3
  • Unit Calculated Volume: 0.0058
  • Unit Calculated Weight: 2.03
