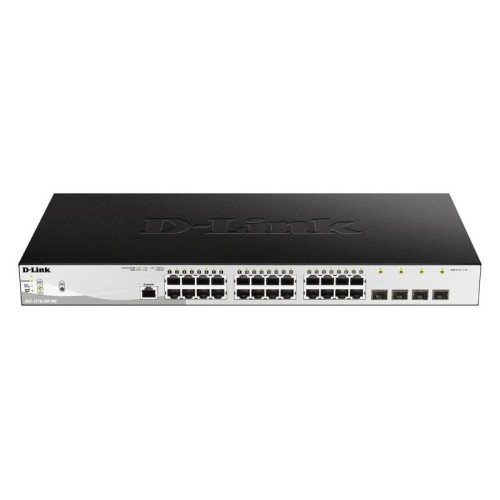

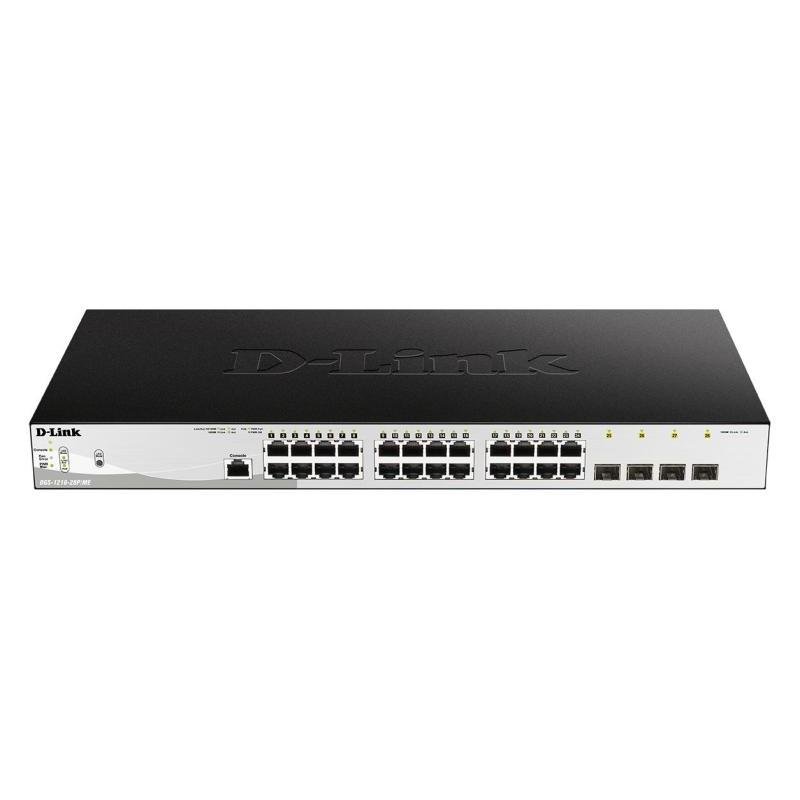

DGS-1210-28P/ME

Technical Specifications

• Summary: D-Link DGS-1210-28P/ME/E. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Form factor: 1U
• Vendor Homepage: https://eu.dlink.com/uk/en/products/dgs-1210-me-series-gigabit-managed-switches
• Name: NET SWITCH 24PORT 10/100/1000/POE DGS-1210-28P/ME D-LINK
• Category Code: SWI
• Model: DGS-1210-28P/ME
• Switch type: Managed
• Switch layer: L2/L3
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• ARP inspection: Yes
• Configuring Location Settings (CLI): Yes
• Traffic classification: Yes
• System event log: Yes
• MIB support:  RFC1212 Concise MIB Definitions  RFC1213 MIB II  RFC1215 MIB Traps Convention  RFC1065, 1151, 2578 MIB Structure  RFC1493 Bridge MIB  RFC1157, 2573, 2575, 2576 SNMP MIB  RFC3418 SNMPv2 MIB  RFC2819 RMON MIB  RFC2021 RMONv2 MIB  RFC1643, 1650, 2
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Installed SFP modules quantity: 4
• Console port: RJ-45
• Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ah/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Cable types supported: Cat5/Cat5e
• Port mirroring: Yes
• Full duplex: Yes
• Half duplex: Yes
• Active link detection: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Broadcast storm control: Yes
• Ethernet LAN data rates: 1000
• Flow control support: Yes
• IPv4 routes: 64
• IPv6 routes: 32
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: MAC address-based VLAN/Port-based VLAN/Private VLAN/Protocol-based VLAN
• Number of VLANs: 4094
• Fiber ethernet cabling technology: 1000BASE-X
• Switching capacity: 56
• Forwarding rate: 41.7
• MAC address table: 16000
• Store-and-forward: Yes
• Number of queues: 8
• Static route: Yes
• Number of static routes: 96
• Number of IP interfaces: 4
• Packet buffer memory: 1.5
• DHCP features: DHCP client/DHCP relay/DHCP server/DHCP snooping
• Access Control List (ACL): Yes
• Access Control List (ACL) rules: 256
• Access Control List (ACL) ingress: 256
• IGMP snooping: Yes
• Authentication type: AAA,RADIUS,TACACS+
• BPDU filtering/protection: Yes
• IP-MAC-Port binding: Yes
• Loop protection: Yes
• Password protection: Yes
• Queue scheduling algorithms: Strict Priority Queue (SPQ)/Weighted Round Robin (WRR)
• Security algorithms: EAP/SNMP/SNMPv2/SNMPv3
• SSH/SSL support: Yes
• Multicast support: Yes
• Multicast features: Controllable multicast
• Number of multicast groups filtered: 256
• Multicast Listener Discovery (MLD) snooping: MLD v1, MLD v2
• GARP VLAN Registration Protocol (GVRP): Yes
• IPv4 & IPv6 features: Dual stack IPv4/IPv6/ICMPv6/IPv4/IPv6 access-control list (ACL)/IPv6 Path MTU Discovery/IPv6 Telnet
• Form factor: 1U
• LED indicators: Activity/Fan fail/Link/Power/Speed
• Number of fans: 2
• Memory type: DDR3-SDRAM
• Internal memory: 256
• Flash memory: 32
• Noise level: 52.9
• Mean time between failures (MTBF): 331669
• Power source: AC
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Input voltage: 100 - 240
• Power consumption (max): 251.5
• Power protection features: Surge protection
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 24
• Total Power over Ethernet (PoE) budget: 193
• Operating temperature (T-T): -5 - 50
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 90
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 857.98
• Width: 440
• Depth: 210
• Height: 44
• Weight: 3340
• Sustainability certificates: UL ECOLOGO
• Sustainability compliance: Yes
• Compliance certificates: BSMI/CB/CCC/CE/Federal Communications Commission (FCC)/Low Voltage Directive (LVD)/VCCI
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01925
• Unit Calculated Weight: 6
