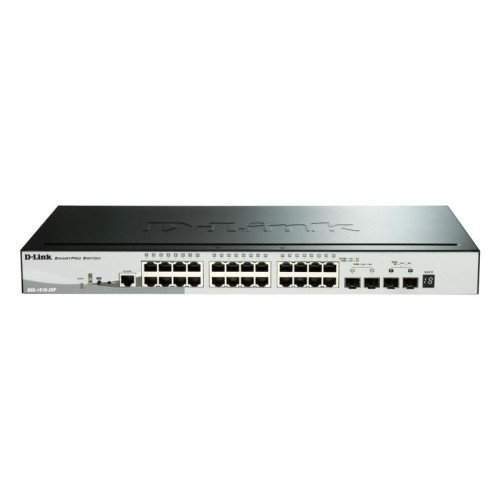

NET SWITCH 28PORT 1000M POE/DGS-1510-28P D-LINK

Technical Specifications

• Summary: D-Link 28-Port Gigabit Stackable PoE Smart Managed Switch including 2 x 10G SFP+ & 2 x SFP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 92 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
• Vendor Homepage: https://www.dlink.com/uk/en/business-solutions/switching/smart-switches/smartpro/dgs-1510-series-gigabit-stackable-smart-managed-switches
• Name: NET SWITCH 28PORT 1000M POE/DGS-1510-28P D-LINK
• Category Code: SWI
• Switch type: Managed
• Switch layer: L3
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• System event log: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 2
• SFP+ module slots quantity: 2
• Power connector: DC-in jack
• Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3u/IEEE 802.3x
• 10G support: Yes
• Cable types supported: Cat5/Cat5e
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Head-of-line (HOL) blocking: Yes
• Link aggregation: Yes
• MAC address auto-learning supported: Yes
• VLAN support: Yes
• Switching capacity: 92
• Forwarding rate: 68.45
• MAC address table: 16000
• Store-and-forward: Yes
• Number of static routes: 512
• Jumbo frames support: Yes
• Packet buffer memory: 1.5
• DHCP features: DHCP client/DHCP server
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• MAC address filtering: Yes
• SSH/SSL support: Yes
• Static port security: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Stackable: Yes
• Product colour: Black
• LED indicators: Activity/Link/PoE/Power
• Number of fans: 2
• Safety: cUL, CB
• Physical stacking (units): 6
• Virtual stacking (units): 32
• Noise level: 46.4
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (typical): 238.7
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 24
• Total Power over Ethernet (PoE) budget: 193
• Operating temperature (T-T): -5 - 50
• Storage temperature (T-T): -20 - 70
• Operating relative humidity (H-H): 0 - 95
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 813.967
• Width: 440
• Depth: 250
• Height: 44
• Weight: 2540
• Manual: Yes
• Package width: 348
• Package depth: 511
• Package height: 91
• Package weight: 3995
• Master (outer) cases per pallet (air): 40
• Master (outer) cases per pallet (sea): 40
• Pallet gross length: 1100
• Pallet gross weight (air): 533900
• Pallet gross weight (sea): 533900
• Pallet gross width: 1200
• Pallet height (air): 2050
• Pallet height (sea): 2050
• Products per pallet (air): 120
• Products per pallet (sea): 120
• Products per shipping (inner) case: 3
• Shipping (inner) case gross weight: 12885
• Shipping (inner) case height: 383
• Shipping (inner) case length: 529
• Shipping (inner) case net weight: 9270
• Shipping (inner) case width: 296
• Certification: CE, FCC, C-Tick, VCCI, BSMI, CCC
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01606
• Unit Calculated Weight: 4.2
