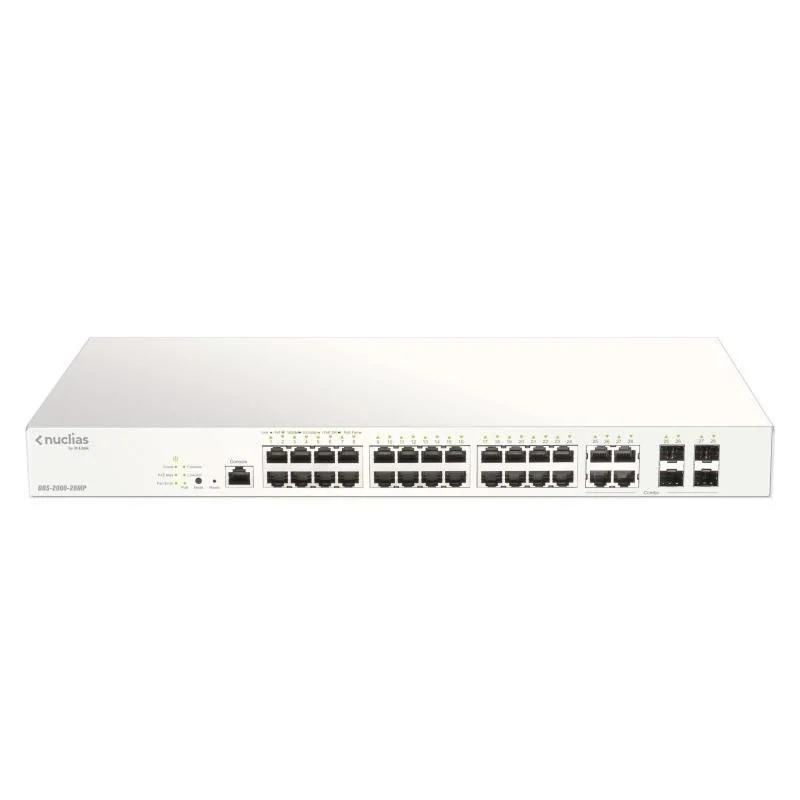

NET SWITCH 28PORT 100/1000/4SFP DBS-2000-28MP D-LINK

Technical Specifications

• Summary: D-Link 28-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ad, IEEE 802.3at. Rack mounting
• Vendor Homepage: https://www.dlink.com/en/products/dbs-2000-28mp-28-port-nuclias-cloud-managed-poe-switch
• Name: NET SWITCH 28PORT 100/1000/4SFP DBS-2000-28MP D-LINK
• Category Code: SWI
• Model name: DBS-2000-28MP
• Switch type: Managed
• Switch layer: L2
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Combo SFP ports quantity: 4
• Console port: RJ-45
• Networking standards: IEEE 802.3ad/IEEE 802.3at
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Auto MDI/MDI-X: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• Switching capacity: 56
• Forwarding rate: 41.7
• Packet buffer memory: 4.1
• IGMP snooping: Yes
• Security algorithms: WPA/WPA2
• Rack mounting: Yes
• Product colour: Grey
• LED indicators: Yes
• Built-in processor: Yes
• Processor frequency: 500
• Memory type: DDR3-SDRAM
• Internal memory: 256
• Flash memory: 32
• Mean time between failures (MTBF): 277967
• AC input voltage: 100 - 240
• Power consumption (max): 446.1
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 370
• Operating temperature (T-T): -5 - 50
• Storage temperature (T-T): -20 - 70
• Operating relative humidity (H-H): 0 - 95
• Storage relative humidity (H-H): 0 - 95
• Operating altitude: 0 - 1500
• Heat dissipation: 1521.99
• Width: 440
• Depth: 250
• Height: 44
• Weight: 3940
• Package width: 365
• Package depth: 521
• Package height: 92
• Package weight: 5126
• Master (outer) cases per pallet (air): 24
• Master (outer) cases per pallet (sea): 40
• Pallet gross length: 1100
• Pallet gross weight (air): 409500
• Pallet gross weight (sea): 670000
• Pallet gross width: 1200
• Pallet height (air): 1314
• Pallet height (sea): 2100
• Products per pallet (air): 72
• Products per pallet (sea): 120
• Products per shipping (inner) case: 3
• Shipping (inner) case gross weight: 16250
• Shipping (inner) case height: 393
• Shipping (inner) case length: 539
• Shipping (inner) case net weight: 15378
• Shipping (inner) case width: 295
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01732
• Unit Calculated Weight: 4
