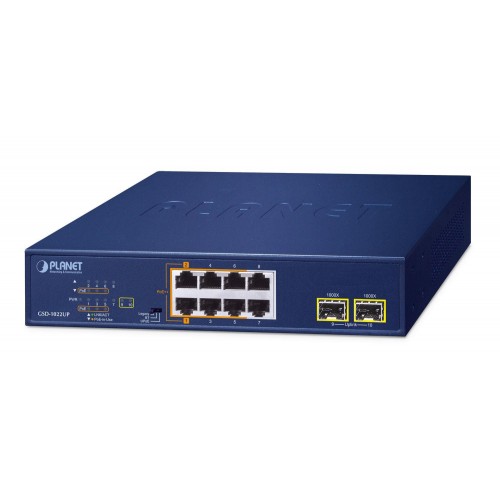

NET SWITCH 2PORT 1000M POE+/GSD-1022UP PLANET

Technical Specifications

• Summary: PLANET 2-Port 10/100/1000T 802.3bt. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable, Rack mounting
• Vendor Homepage: https://www.planet.com.tw/en/product/gsd-1022up
• Name: NET SWITCH 2PORT 1000M POE+/GSD-1022UP PLANET
• Category Code: SWI
• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Installed SFP modules quantity: 2
• Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x
• Full duplex: Yes
• Half duplex: Yes
• Auto MDI/MDI-X: Yes
• Switching capacity: 20
• Throughput: 13.39
• MAC address table: 4000
• Store-and-forward: Yes
• Jumbo frames support: Yes
• Jumbo frames: 9000
• Rack mounting: Yes
• Product colour: Blue
• LED indicators: Yes
• Number of fans: 1
• Wall mountable: Yes
• Power source: AC
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Input current: 2.5
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 4
• Power over Ethernet 4PPoE (PoE++) ports quantity: 2
• Operating temperature (T-T): 0 - 50
• Storage temperature (T-T): -10 - 70
• Operating relative humidity (H-H): 5 - 95
• Storage relative humidity (H-H): 5 - 95
• Heat dissipation: 682.4
• Width: 220
• Depth: 150
• Height: 44
• Weight: 1322
• Certification: FCC Part 15 Class A, CE
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0044
• Unit Calculated Weight: 2
