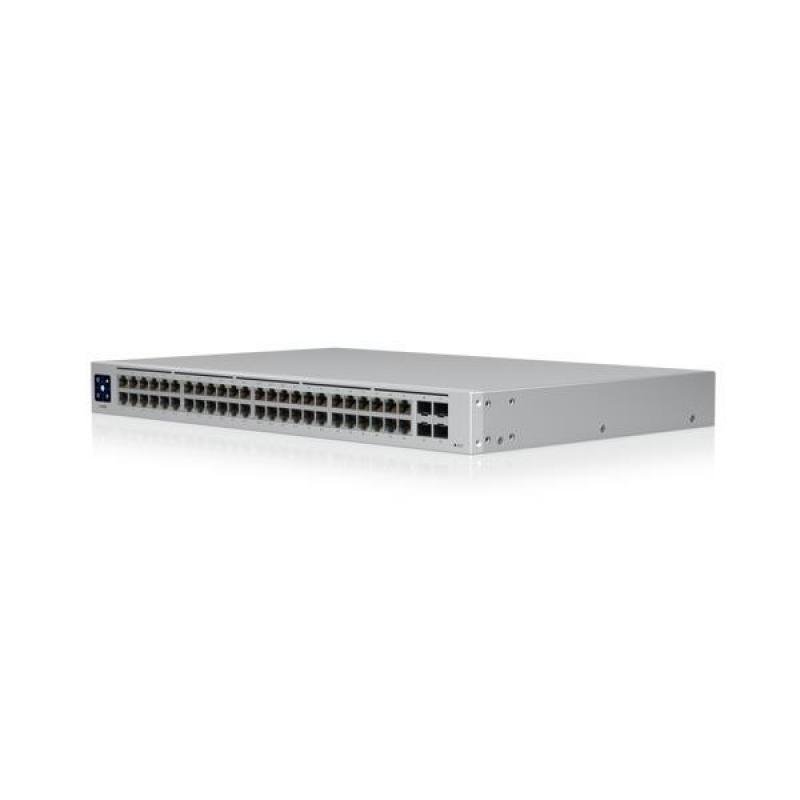

NET SWITCH 48PORT 1000M 4SFP/POE USW-48-POE UBIQUITI

NET SWITCH 48PORT 1000M 4SFP/POE USW-48-POE UBIQUITI
NET SWITCH 48PORT 1000M 4SFP/POE USW-48-POE UBIQUITI
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • SFP module slots quantity: 4
  • Switching capacity: 104
Врз основа на 0 коментари. - Напиши коментар
49,383ден.
  • Достапност:
  • Бренд: UBIQUITI
  • Шифра: 304608
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Ubiquiti UniFi USW-48-POE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Vendor Homepage: https://store.ui.com/collections/unifi-network-switching/products/usw-48-poe
  • Name: NET SWITCH 48PORT 1000M 4SFP/POE USW-48-POE UBIQUITI
  • Category Code: SWI
  • Model name: USW-48-POE
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 4
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Port mirroring: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-sensing: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Switching capacity: 104
  • Throughput: 52
  • Forwarding rate: 77.38
  • Jumbo frames support: Yes
  • Authentication type: RADIUS
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Stainless steel
  • LED indicators: Activity/Link/Speed
  • Fanless: Yes
  • Power source: AC/DC
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (max): 45
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 32
  • Power over Ethernet (PoE) power per port: 32
  • Total Power over Ethernet (PoE) budget: 195
  • Operating temperature (T-T): -5 - 40
  • Operating relative humidity (H-H): 10 - 90
  • Width: 442.4
  • Depth: 285
  • Height: 43.7
  • Weight: 4520
  • Manual: Yes
  • Certification: CE, FCC, IC
  • Units per Shipping Box: 2
  • Unit Calculated Volume: 0.03019
  • Unit Calculated Weight: 6.28
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Authentication typeRADIUS
Auto MDI/MDI-XYes
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, FCC, IC
Depth285
FanlessYes
Flow control supportYes
Form factor1U
Height43.7
Jumbo frames supportYes
LED indicatorsActivity/Link/Speed
Link aggregationYes
ManualYes
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-5 - 40
Port mirroringYes
Power consumption (max)45
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port32
Power over Ethernet plus (PoE+) ports quantity32
Power supply includedYes
Product colourStainless steel
Rack mountingYes
SFP module slots quantity4
Spanning tree protocolYes
SummaryUbiquiti UniFi USW-48-POE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Switch layerL2
Throughput52
Total Power over Ethernet (PoE) budget195
VLAN supportYes
Weight4520
Width442.4
Specs
Category CodeSWI
Description

A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.

  • (32) GbE, PoE+ RJ45 ports
  • (16) GbE RJ45 ports
  • (4) 1G SFP ports
  • 195W total PoE availability
  • 1.3" LCM color touchscreen with AR switch management

Forwarding rate77.38
Model nameUSW-48-POE
NameNET SWITCH 48PORT 1000M 4SFP/POE USW-48-POE UBIQUITI
PictureUrlhttps://static.elko.cloud/ProductImages/8434461f-2817-4943-9a06-fba9c1c8eb1c.Jpeg
Power sourceAC/DC
Switch typeManaged
Switching capacity104
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/8434461f-2817-4943-9a06-fba9c1c8eb1c.Jpeg
Unit Calculated Volume0.03019
Unit Calculated Weight6.28
Units per Shipping Box2
Vendor Homepagehttps://store.ui.com/collections/unifi-network-switching/products/usw-48-poe
