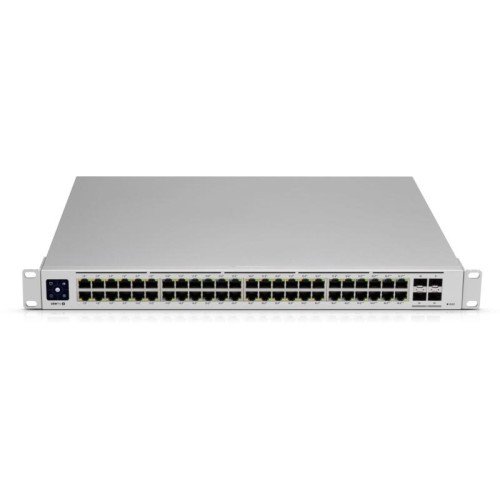

NET SWITCH 48PORT 1000M 4SFP+/USW-PRO-48 UBIQUITI

Technical Specifications

• Summary: Ubiquiti UniFi USW-PRO-48. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1x. DC input voltage: 11.5 V. Rack mounting, Form factor: 1U
• Vendor Homepage: https://store.ui.com/collections/unifi-network-routing-switching/products/usw-pro-48
• Name: NET SWITCH 48PORT 1000M 4SFP+/USW-PRO-48 UBIQUITI
• Category Code: SWI
• Model name: USW-PRO-48
• Switch type: Managed
• Switch layer: L2/L3
• Basic switching RJ-45 Ethernet ports quantity: 48
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 4
• Networking standards: IEEE 802.1x
• 10G support: Yes
• Port mirroring: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Switching capacity: 176
• Forwarding rate: 130.944
• Authentication type: IEEE 802.1x,RADIUS
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Silver
• LED indicators: Activity/Link/Speed
• Backlight display: Yes
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• DC input voltage: 11.5
• Input current: 5.22
• Power consumption (max): 60
• Operating temperature (T-T): -5 - 45
• Operating relative humidity (H-H): 10 - 90
• Width: 442.4
• Depth: 285.4
• Height: 43.7
• Weight: 4000
• User guide: Yes
• Certification: CE, FCC, IC ETSI300-019-1.4
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0252
• Unit Calculated Weight: 5.2
