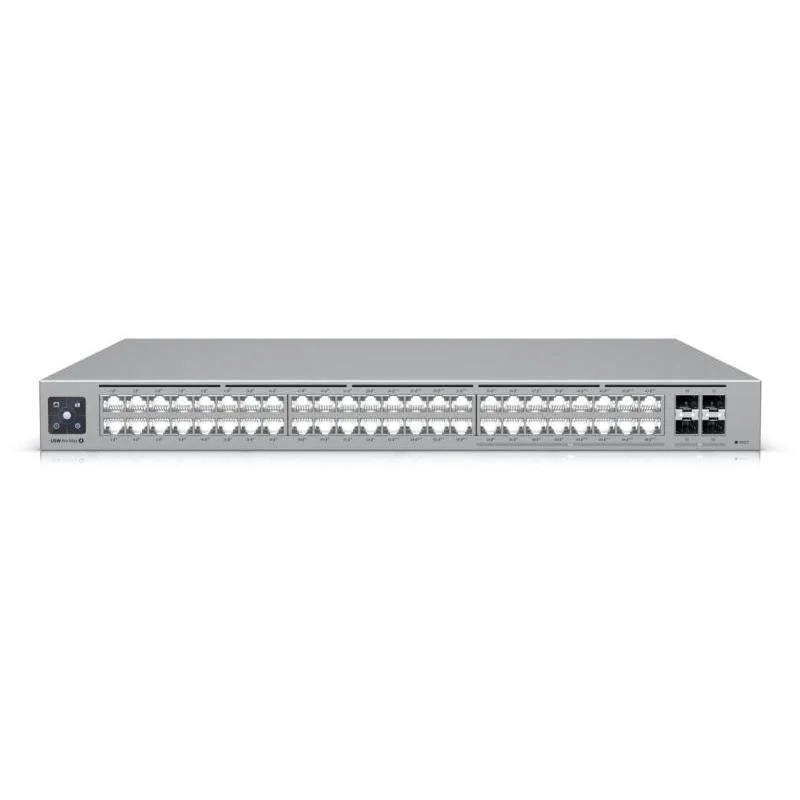

USW-PRO-MAX-48-POE

Technical Specifications

• Summary: Ubiquiti UniFi Pro Max 48 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
• Vendor Homepage: https://eu.store.ui.com/eu/en/pro/category/switching-professional-max/collections/unifi-switching-pro-max/products/usw-pro-max-48-poe?variant=usw-pro-max-48-poe-eu
• Name: NET SWITCH 48PORT POE++/USW-PRO-MAX-48-POE UBIQUITI
• Category Code: SWI
• Model: USW-PRO-MAX-48-POE
• Model name: Pro Max 48 PoE
• Switch type: Managed
• Switch layer: L3
• Quality of Service (QoS) support: Yes
• Basic switching RJ-45 Ethernet ports quantity: 48
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 32
• 2.5G Ethernet (copper) ports quantity: 16
• SFP+ module slots quantity: 4
• Power connector: AC-in jack
• Networking standards: IEEE 802.1x
• Port mirroring: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• IPv4 routes: 12000
• Rate limiting: Yes
• VLAN support: Yes
• Virtual LAN features: Voice VLAN
• Number of VLANs: 1000
• Switching capacity: 224
• Throughput: 112
• Forwarding rate: 167
• MAC address table: 32000
• Static route: Yes
• Jumbo frames support: Yes
• Packet buffer memory: 2
• DHCP features: DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
• IGMP snooping: Yes
• Loop protection: Yes
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Grey
• Housing material: SGCC
• Reset button: Yes
• LED indicators: System
• Backlight display: Yes
• Display type: LCM
• Power source: AC
• Power supply included: Yes
• Redundant power supply (RPS) support: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power consumption (max): 820
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) type supported: PoE+/PoE++ (4PPoE)
• Power over Ethernet plus (PoE+) ports quantity: 32
• Power over Ethernet 4PPoE (PoE++) ports quantity: 16
• Power over Ethernet (PoE) voltage: 57
• Power over Ethernet (PoE) power per port: 15.4
• Total Power over Ethernet (PoE) budget: 720
• Operating temperature (T-T): -5 - 40
• Operating relative humidity (H-H): 10 - 90
• Heat dissipation: 341.2
• Width: 442.4
• Depth: 399.6
• Height: 43.7
• Weight: 6200
• Cables included: Power
• Manual: Yes
• Rack mount kit: Yes
• Sustainability compliance: Yes
• Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
• Units per Shipping Box: 2
• Unit Calculated Volume: 0.04008
• Unit Calculated Weight: 8.68
