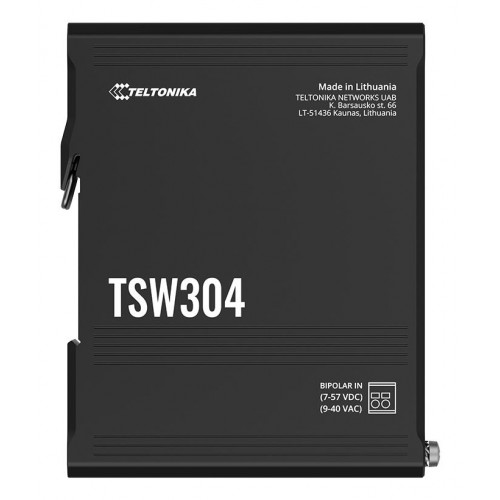

NET SWITCH 4PORT 10/100/1000/TSW304 TELTONIKA

Technical Specifications

• Summary: Teltonika TSW304. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries, Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Wall mountable
• Vendor Homepage: https://www.teltonika-networks.com/
• Name: NET SWITCH 4PORT 10/100/1000/TSW304 TELTONIKA
• Category Code: SWI
• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 4
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 4
• Networking standards: IEEE 802.3ab/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
• Auto MDI/MDI-X: Yes
• Switching capacity: 8
• MAC address table: 2000
• Jumbo frames support: Yes
• Jumbo frames: 9216
• Packet buffer memory: 0.128
• Product colour: Black
• Housing material: Aluminium
• LED indicators: LAN/Power
• DIN rail mounting: Yes
• International Protection (IP) code: IP30
• Wall mountable: Yes
• Power source: AC/DC/PoE
• DC input voltage: 7 - 57
• Input voltage: 7 - 57 DC / 9 - 40 AC
• Power consumption (max): 1.44
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) voltage: 30
• Operating temperature (T-T): -40 - 75
• Operating relative humidity (H-H): 5 - 95
• Width: 102
• Depth: 81.5
• Height: 25
• Weight: 210
• Quick start guide: Yes
• Package type: Box
• Package width: 175
• Package depth: 150
• Package height: 35
• Compliance certificates: CB/CE/Federal Communications Commission (FCC)/RCM/REACH/RoHS/UKCA/WEEE
• Country of origin: Lithuania
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00033
• Unit Calculated Weight: 0.3
