NET SWITCH 4PORT POE+ D8004/02101-002 AXIS

NET SWITCH 4PORT POE+ D8004/02101-002 AXIS
NET SWITCH 4PORT POE+ D8004/02101-002 AXIS
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 4
Врз основа на 0 коментари. - Напиши коментар
8,440ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 312731
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02101-002. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: DC-in jack. Power over Ethernet (PoE)
  • Vendor Homepage: https://www.axis.com/
  • Name: NET SWITCH 4PORT POE+ D8004/02101-002 AXIS
  • Category Code: SWI
  • Model name: D8004
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Ethernet LAN data rates: 10,100
  • Product colour: White
  • Housing material: Metal
  • LED indicators: Activity/Network/PoE/Power
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (max): 62
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 4
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 60
  • Operating temperature (T-T): 0 - 50
  • Storage temperature (T-T): -10 - 50
  • Operating relative humidity (H-H): 5 - 95
  • Storage relative humidity (H-H): 5 - 95
  • Width: 90
  • Depth: 80
  • Height: 21
  • Weight: 172
  • Cables included: AC
  • User guide: Yes
  • Certification: EN 55022:2010/55032:2012 + AC : 2013 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 50581, FCC Part 15 Subpart B Class B, ICES-003 Class B, IEC/EN/UL 60950-1, CE, WEEE, C-Tick/RCM
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.002368
  • Unit Calculated Weight: 0.857
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Cables includedAC
CertificationEN 55022:2010/55032:2012 + AC : 2013 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 50581, FCC Part 15 Subpart B Class B, ICES-003 Class B, IEC/EN/UL 60950-1, CE, WEEE, C-Tick/RCM
Depth80
Ethernet LAN data rates10,100
Harmonized System (HS) code85176990
Height21
Housing materialMetal
LED indicatorsActivity/Network/PoE/Power
Networking standardsIEEE 802.3af/IEEE 802.3at
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)0 - 50
Power connectorDC-in jack
Power consumption (max)62
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30
Power over Ethernet plus (PoE+) ports quantity4
Power supply includedYes
Product colourWhite
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-10 - 50
SummaryAxis 02101-002. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: DC-in jack. Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget60
User guideYes
Weight172
Width90
Specs
Category CodeSWI
Description

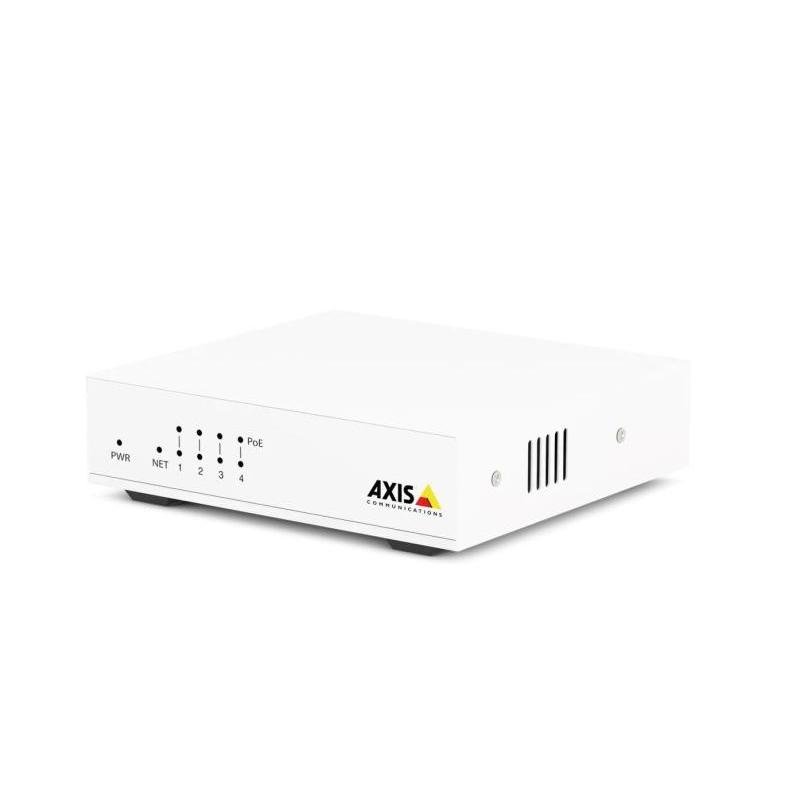

The palm-sized AXIS D8004 Unmanaged PoE Switch delivers network and power for up to 4 network devices with plug and play installation. Using AXIS D8004 Unmanaged PoE Switch as a central power source simplifies both installation and maintenance. The switch, together with AXIS surveillance cards, is perfect for small systems with few devices and basic video storage requirements. AXIS D8004 Unmanaged PoE Switch is also ideal when it’s not possible to pull multiple cables. If there’s local power available, simply pull one cable with data connection from the core switch or router, and AXIS D8004 Unmanaged PoE Switch can provide Power over Ethernet (PoE) for all 4 products.

  • 4-port 10/100 Mbps 802.3af/at PoE+; 60 W PoE power budget; Level VI energy efficiency compliance; Palm-sized, metal casing; Plug and play installation

Model nameD8004
NameNET SWITCH 4PORT POE+ D8004/02101-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/12bf7636-eda4-4929-83e6-30676e5be4cd.Jpeg
Switch typeUnmanaged
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/12bf7636-eda4-4929-83e6-30676e5be4cd.Jpeg
Unit Calculated Volume0.002368
Unit Calculated Weight0.857
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/
