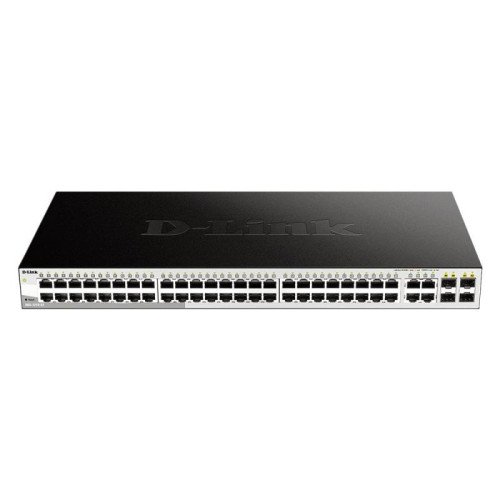

NET SWITCH 52PORT 10/100/1000/DGS-1210-52D-LINK

Technical Specifications

• Summary: D-Link 52-Port Gigabit Smart Managed Switch including 4 x 100/1000Mbps Combo Ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U
• Vendor Homepage: https://www.dlink.com/en/products/dgs-1210-series-gigabit-smart-plus-switches
• Name: NET SWITCH 52PORT 10/100/1000/DGS-1210-52D-LINK
• Category Code: SWI
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• ARP inspection: Yes
• Configuring Location Settings (CLI): Yes
• System event log: Yes
• MIB support: Y
• Basic switching RJ-45 Ethernet ports quantity: 48
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Combo SFP ports quantity: 4
• Power connector: AC-in jack
• Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Head-of-line (HOL) blocking: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Number of VLANs: 256
• Switching capacity: 104
• Forwarding rate: 77.4
• MAC address table: 16000
• Store-and-forward: Yes
• Jumbo frames support: Yes
• Jumbo frames: 10000
• Packet buffer memory: 12
• DHCP features: DHCP client/DHCP server
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• Loop protection: Yes
• MAC address filtering: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Stackable: Yes
• Form factor: 1U
• Product colour: Black
• LED indicators: Yes
• Memory type: DDR3-SDRAM
• Internal memory: 256
• Flash memory: 32
• Noise level: 0
• Mean time between failures (MTBF): 400667
• Power source: AC
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power consumption (max): 34.85
• Operating temperature (T-T): -5 - 50
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 0 - 95
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 118.92
• Width: 440
• Depth: 210
• Height: 44
• Weight: 3460
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02035
• Unit Calculated Weight: 4
