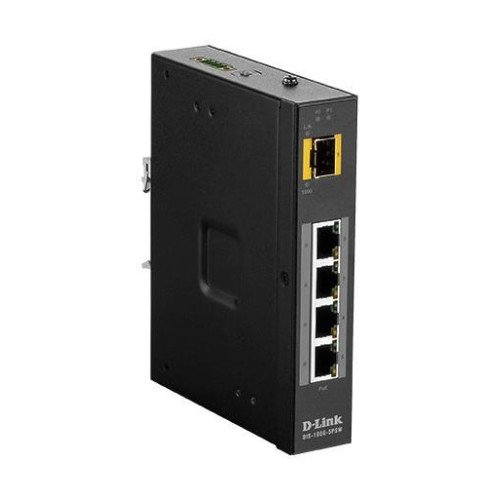

DIS-100G-5PSW

Technical Specifications

• Summary: D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC input voltage: 12 - 58 V. Power over Ethernet (PoE). Wall mountable
• Vendor Homepage: https://eu.dlink.com/uk/en/products/dis-100g-5psw
• Name: NET SWITCH 5PORT 100/1000/DIS-100G-5PSW D-LINK
• Category Code: SWI
• Model: DIS-100G-5PSW
• Switch type: Unmanaged
• Switch layer: L2
• Traffic shaping: Yes
• Basic switching RJ-45 Ethernet ports quantity: 4
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 1
• Fiber optic connector: LC
• Networking standards: IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Switching capacity: 10
• Forwarding rate: 7.44
• MAC address table: 2000
• Store-and-forward: Yes
• Jumbo frames support: Yes
• Jumbo frames: 9000
• Multicast support: Yes
• Product colour: Black
• LED indicators: LAN/PoE/Power
• DIN rail mounting: Yes
• Wall mountable: Yes
• Electromagnetic compatibility: FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
• DC input voltage: 12 - 58
• Power consumption (max): 120.2
• Power protection features: Over current/Reverse polarity
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 4
• Power over Ethernet (PoE) voltage range: 54 - 58
• Total Power over Ethernet (PoE) budget: 120
• Operating temperature (T-T): -40 - 75
• Storage temperature (T-T): -40 - 85
• Operating relative humidity (H-H): 5 - 95
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 410.12
• Width: 139
• Depth: 29
• Height: 107
• Weight: 375
• Package width: 181
• Package depth: 210
• Package height: 75
• Package weight: 700
• Master (outer) cases per pallet (air): 30
• Master (outer) cases per pallet (sea): 48
• Pallet gross length: 1200
• Pallet gross weight (air): 251300
• Pallet gross weight (sea): 391880
• Pallet gross width: 1100
• Pallet height (air): 1335
• Pallet height (sea): 2055
• Products per pallet (air): 300
• Products per pallet (sea): 480
• Products per shipping (inner) case: 10
• Shipping (inner) case gross weight: 7810
• Shipping (inner) case height: 240
• Shipping (inner) case length: 390
• Shipping (inner) case net weight: 7000
• Shipping (inner) case width: 380
• Certification: IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.002646
• Unit Calculated Weight: 0.7
