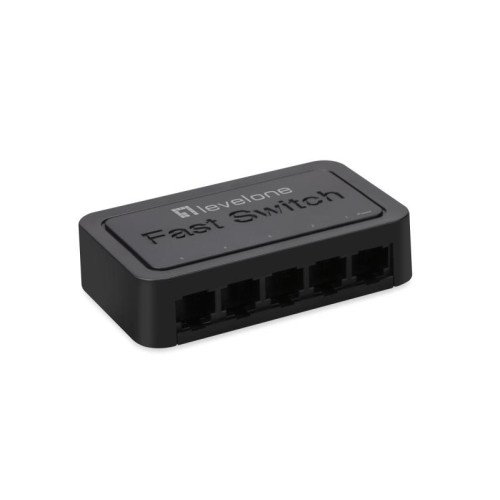

NET SWITCH 5PORT 10/100M/FEU-0512 LEVELONE

NET SWITCH 5PORT 10/100M/FEU-0512 LEVELONE
достава за 24h
NET SWITCH 5PORT 10/100M/FEU-0512 LEVELONE
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Switching capacity: 1
Врз основа на 0 коментари. - Напиши коментар
1,061ден.
  • Достапност: Има залиха
  • Бренд: LEVELONE
  • Шифра: 430877
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: LevelOne 5-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V
  • Vendor Homepage: https://www.level1.com/level1_en/feu-0512-5-port-fast-ethernet-switch-53016103201
  • Name: NET SWITCH 5PORT 10/100M/FEU-0512 LEVELONE
  • Category Code: SWI
  • Model name: FEU-0512
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Fast Ethernet (copper) ports quantity: 5
  • Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • MAC address auto-aging supported: Yes
  • MAC address auto-learning supported: Yes
  • Switching capacity: 1
  • MAC address table: 1000
  • Packet buffer memory: 0.744
  • Product colour: Black
  • LED indicators: Activity/Link/Power
  • Fanless: Yes
  • Power source: DC
  • Power supply included: Yes
  • DC input voltage: 5
  • Input current: 0.55
  • Power consumption (typical): 1.3
  • Operating temperature (T-T): 0 - 45
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 90
  • Width: 88.2
  • Depth: 52.7
  • Height: 21.8
  • Weight: 47
  • Quick start guide: Yes
  • AC adapter included: Yes
  • Package type: Box
  • Package width: 123
  • Package depth: 80
  • Package height: 83
  • Package weight: 140
  • Sustainability compliance: Yes
  • Compliance certificates: CE/RoHS/UKCA
  • Master (outer) cases per pallet (air): 24
  • Pallet gross length: 800
  • Pallet gross width: 1200
  • Pallet height (air): 1470
  • Country of origin: China
  • Master (outer) case width: 271
  • Master (outer) case length: 430
  • Master (outer) case height: 445
  • Master (outer) case gross weight: 8000
  • Products per master (outer) case: 50
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0012
  • Unit Calculated Weight: 0.8
Specifications
AC adapter includedYes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Compliance certificatesCE/RoHS/UKCA
Country of originChina
DC input voltage5
Depth52.7
FanlessYes
Fast Ethernet (copper) ports quantity5
Full duplexYes
Half duplexYes
Height21.8
Input current0.55
LED indicatorsActivity/Link/Power
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes
MAC address table1000
Master (outer) case gross weight8000
Master (outer) case height445
Master (outer) case length430
Master (outer) case width271
Master (outer) cases per pallet (air)24
Networking standardsIEEE 802.3/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 45
Package depth80
Package height83
Package typeBox
Package weight140
Package width123
Packet buffer memory0.744
Pallet gross length800
Pallet gross width1200
Pallet height (air)1470
Power consumption (typical)1.3
Power supply includedYes
Product colourBlack
Products per master (outer) case50
Quick start guideYes
Storage relative humidity (H-H)5 - 90
Storage temperature (T-T)-40 - 70
SummaryLevelOne 5-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V
Sustainability complianceYes
Weight47
Width88.2
Specs
Auto-negotiationYes
Category CodeSWI
Description

The LevelOne FEU-0512 is a wire-speed, non-blocking networking device that provides 5 ports 10/100 Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.

  • Provides flexibility of 5x 10/100BASE-TX ports
  • 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Quick and easy installation
  • Supports 1K MAC address auto-learning and auto-aging
  • Simple Plug and Play installation

Model nameFEU-0512
NameNET SWITCH 5PORT 10/100M/FEU-0512 LEVELONE
PictureUrlhttps://static.elko.cloud/ProductImages/38da3188-cedc-4f74-9e1b-a78b3bb70c9a.Jpeg
Power sourceDC
Switch typeUnmanaged
Switching capacity1
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/38da3188-cedc-4f74-9e1b-a78b3bb70c9a.Jpeg
Unit Calculated Volume0.0012
Unit Calculated Weight0.8
Units per Shipping Box1
Vendor Homepagehttps://www.level1.com/level1_en/feu-0512-5-port-fast-ethernet-switch-53016103201
