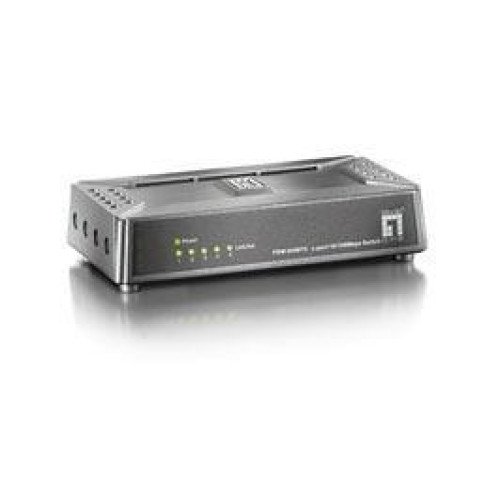

NET SWITCH 5PORT 10/100M/FSW-0508TX LEVELONE

Technical Specifications

• Summary: LevelOne 5-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
• Vendor Homepage: https://uk.level1.com/Switch/FSW-0508TX/p-3222.htm
• Name: NET SWITCH 5PORT 10/100M/FSW-0508TX LEVELONE
• Category Code: SWI
• Model name: FSW-0508TX
• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
• Power connector: DC-in jack
• Networking standards: IEEE 802.3/IEEE 802.3u/IEEE 802.3x
• Copper ethernet cabling technology: 100BASE-TX/10BASE-T
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Flow control support: Yes
• Switching capacity: 1
• MAC address table: 2048
• Store-and-forward: Yes
• Packet forwarding rate (10 Mbps): 14880
• Packet forwarding rate (100 Mbps): 148000
• Product colour: Black/Grey
• LED indicators: Activity/Link/Power
• Buffer size: 48
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Output voltage: 5
• Output current: 1
• Power consumption (typical): 2.5
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 5 - 90
• Storage relative humidity (H-H): 10 - 90
• Width: 125
• Depth: 69
• Height: 30
• Quick start guide: Yes
• AC adapter included: Yes
• Package width: 120
• Package depth: 100
• Package height: 156
• Package weight: 400
• Certification: FCC, CE, RoHS
• Country of origin: China
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.000936
• Unit Calculated Weight: 0.4
