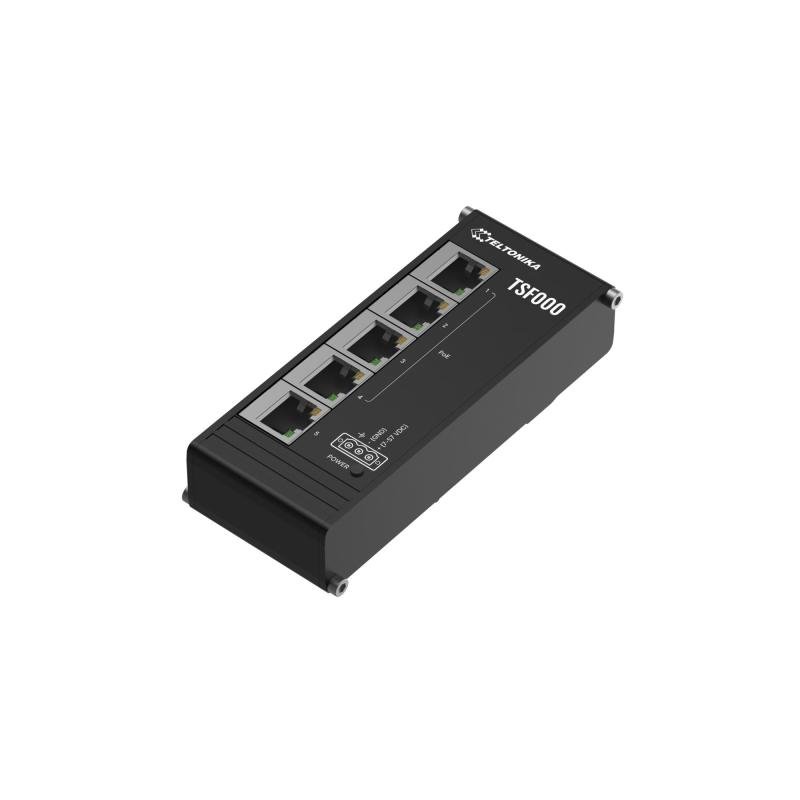

NET SWITCH 5PORT 10/100/POE+ TSF000 TELTONIKA

NET SWITCH 5PORT 10/100/POE+ TSF000 TELTONIKA
достава за 24h
NET SWITCH 5PORT 10/100/POE+ TSF000 TELTONIKA
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 5
Врз основа на 0 коментари. - Напиши коментар
3,041ден.
  • Достапност: Има залиха
  • Бренд: TELTONIKA
  • Шифра: 457159
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika TSF000. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3p, IEEE 802.3q, IEEE 802.3af, IEEE.... DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Form factor: Desktop
  • Vendor Homepage: https://www.teltonika-networks.com/products/ethernet-switches/tsf000
  • Name: NET SWITCH 5PORT 10/100/POE+ TSF000 TELTONIKA
  • Category Code: SWI
  • Model name: TSF000
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Networking standards: IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3p/IEEE 802.3q/IEEE 802.3u/IEEE 802.3x
  • 10G support: Yes
  • MAC address table: 2000
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Packet buffer memory: 0.128
  • Form factor: Desktop
  • Product colour: Black
  • Housing material: Aluminium
  • LED indicators: Power/Status
  • International Protection (IP) code: IP30
  • Power source: DC/PoE
  • DC input voltage: 7 - 57
  • Power consumption (typical): 1
  • Power consumption (max): 1.5
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) type supported: PoE+
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 120
  • Operating temperature (T-T): -40 - 75
  • Operating relative humidity (H-H): 5 - 95
  • Width: 113
  • Depth: 50
  • Height: 28
  • Weight: 142
  • Certification: CE, UKCA, RCM, CB, FCC, IC, WEEE
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.000336
  • Unit Calculated Weight: 0.16
Specifications
10G supportYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
CertificationCE, UKCA, RCM, CB, FCC, IC, WEEE
DC input voltage7 - 57
Depth50
Form factorDesktop
Height28
Housing materialAluminium
International Protection (IP) codeIP30
Jumbo frames9216
Jumbo frames supportYes
LED indicatorsPower/Status
MAC address table2000
Networking standardsIEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3p/IEEE 802.3q/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)-40 - 75
Packet buffer memory0.128
Power consumption (max)1.5
Power consumption (typical)1
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30
Power over Ethernet (PoE) type supportedPoE+
Product colourBlack
SummaryTeltonika TSF000. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3p, IEEE 802.3q, IEEE 802.3af, IEEE.... DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Form factor: Desktop
Total Power over Ethernet (PoE) budget120
Weight142
Width113
Specs
Category CodeSWI
Description

The TSF000 is a compact unmanaged Ethernet switch designed for tight industrial spaces. It features 4× PoE+ outputs with a 120 W power budget, a low-profile housing, DIN rail mount, and 5 x Ethernet ports for stable, reliable industrial connectivity. With a flexible 7 – 57 VDC power input, this switch simplifies powering and linking multiple devices in IoT automation, office spaces, and surveillance systems.

Model nameTSF000
NameNET SWITCH 5PORT 10/100/POE+ TSF000 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/50efe3a7-2ed4-4900-a18d-1fd0e95db6d1.Jpeg
Power sourceDC/PoE
Switch typeUnmanaged
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/50efe3a7-2ed4-4900-a18d-1fd0e95db6d1.Jpeg
Unit Calculated Volume0.000336
Unit Calculated Weight0.16
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.teltonika-networks.com/products/ethernet-switches/tsf000
