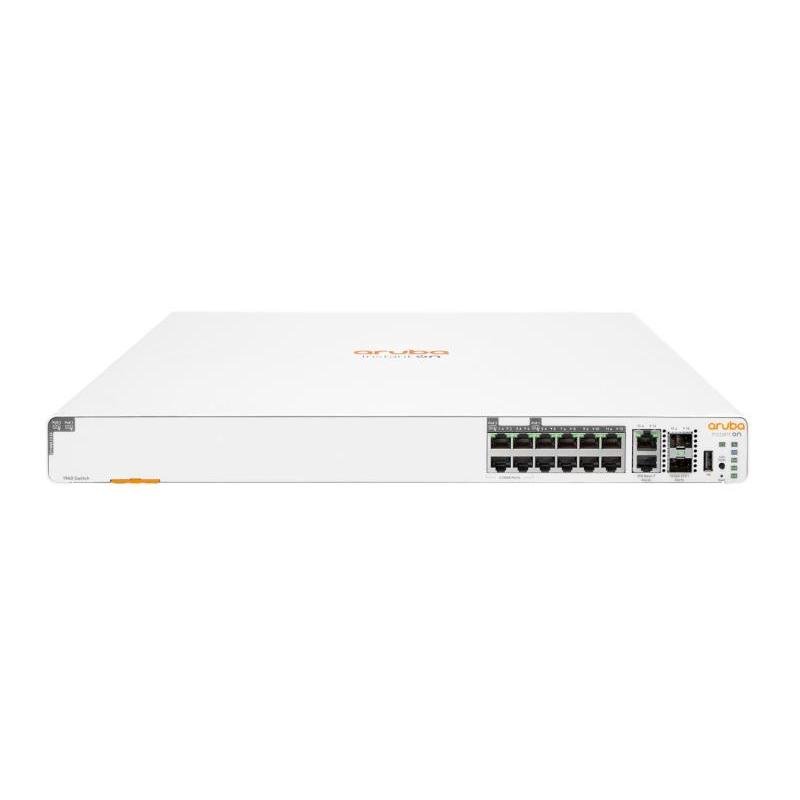

NET SWITCH 8POER 2XT 2XF/1960 S0F35A ARUBA BY HPE

Technical Specifications

• Summary: HPE Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 116 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U
• Vendor Homepage: https://buy.hpe.com/uk/en/networking/switches/fixed-port-web-managed-ethernet-switches/aruba-1900-switch-products/aruba-instant-on-1960-8p-1g-class-4-4p-sr1g-2-5g-class-6-poe-2p-10gbase-t-2p-sfp-480w-switch/p/s0f35a
• Name: NET SWITCH 8POER 2XT 2XF/1960 S0F35A ARUBA BY HPE
• Category Code: SWI
• Switch type: Managed
• Cloud-managed: Yes
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• 2.5G Ethernet (copper) ports quantity: 4
• SFP+ module slots quantity: 2
• Networking standards: IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3an/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• 10G support: Yes
• Port mirroring: Yes
• Full duplex: Yes
• Half duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Auto-sensing: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Switching capacity: 116
• Throughput: 172
• MAC address table: 16000
• Latency (10-100 Mbps): 4.1
• Latency (1 Gbps): 1.8
• Latency (10 Gbps): 2.8
• Jumbo frames support: Yes
• Packet buffer memory: 1.5
• DHCP features: DHCP relay/DHCP snooping
• IGMP snooping: Yes
• Authentication: Port-based authentication
• Authentication type: RADIUS
• SSH/SSL support: Yes
• Management protocols: SNMPv1, SNMPv2c, SNMPv3
• Supported network protocols: HTTPS
• Rack mounting: Yes
• Stackable: Yes
• Form factor: 1U
• Wall mountable: Yes
• Physical stacking (units): 4
• Built-in processor: Yes
• Processor model: ARM Cortex-A9
• Processor frequency: 800
• Memory type: DDR3-SDRAM
• Internal memory: 1024
• Flash memory: 512
• Power source: AC
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power consumption (max): 790
• Power over Ethernet (PoE): Yes
• Total Power over Ethernet (PoE) budget: 480
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 15 - 95
• Storage relative humidity (H-H): 15 - 90
• Operating altitude: 0 - 3000
• Width: 443
• Depth: 350
• Height: 43.9
• Weight: 5240
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.03352
• Unit Calculated Weight: 5.6
