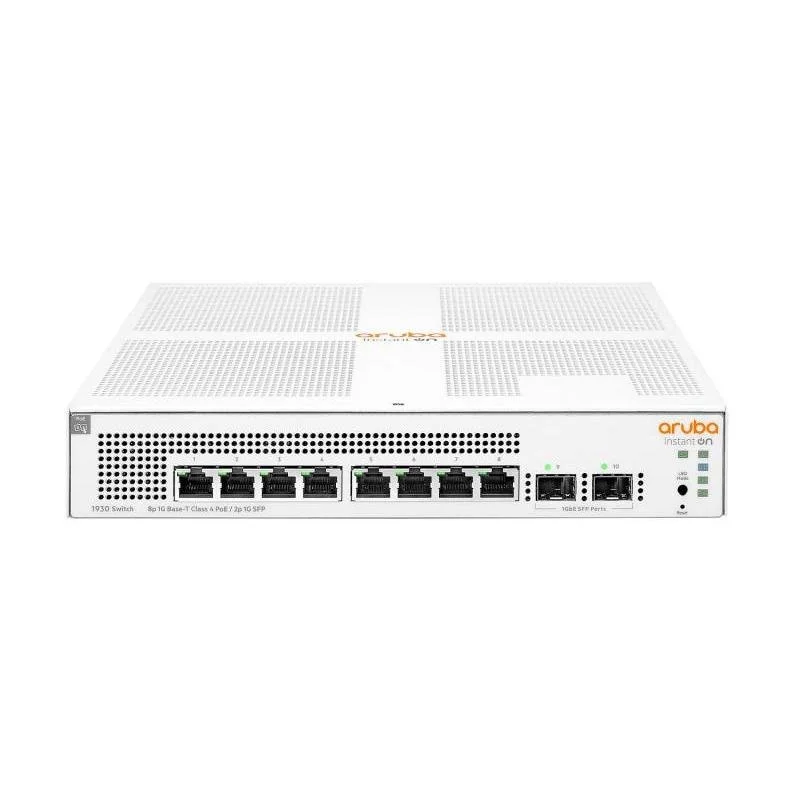

NET SWITCH 8PORT 1000M 2SFP/ION 1930 JL681A ARUBA BY HPE

Technical Specifications

• Summary: HPE Aruba Networking Aruba Instant On 1930. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
• Vendor Homepage: https://buy.hpe.com/uk/en/networking/switches/fixed-port-web-managed-ethernet-switches/aruba-1900-switch-products/aruba-instant-on-1930-switch-series/aruba-instant-on-1930-8g-class4-poe-2sfp-124w-switch/p/JL681A
• Name: NET SWITCH 8PORT 1000M 2SFP/ION 1930 JL681A ARUBA BY HPE
• Category Code: SWI
• Model name: JL681A
• Switch type: Managed
• Switch layer: L2+
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Combo SFP ports quantity: 2
• Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-sensing: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Rate limiting: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Number of VLANs: 256
• Switching capacity: 20
• Throughput: 14.8
• MAC address table: 8000
• Latency (10-100 Mbps): 5.2
• Latency (1 Gbps): 3
• Jumbo frames support: Yes
• Packet buffer memory: 1.5
• IGMP snooping: Yes
• SSH/SSL support: Yes
• Rack mounting: Yes
• Form factor: 1U
• Product colour: White
• Processor model: ARM Cortex-A9
• Processor frequency: 800
• Memory type: SDRAM
• Internal memory: 512
• Flash memory: 256
• Power source: AC
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 150.2
• Power over Ethernet (PoE): Yes
• Total Power over Ethernet (PoE) budget: 124
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 15 - 95
• Storage relative humidity (H-H): 15 - 95
• Width: 254
• Depth: 254
• Height: 43.9
• Weight: 1160
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02268
• Unit Calculated Weight: 3
