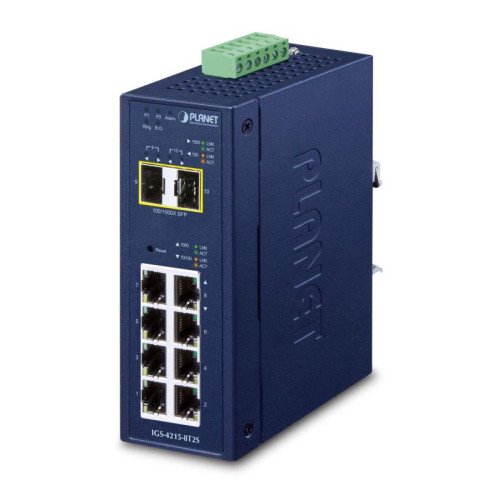

NET SWITCH 8PORT 1000M/IGS-4215-8T2S PLANET

NET SWITCH 8PORT 1000M/IGS-4215-8T2S PLANET
NET SWITCH 8PORT 1000M/IGS-4215-8T2S PLANET
  • Switch type: Managed
  • Switch layer: L2/L4
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 20
Врз основа на 0 коментари. - Напиши коментар
14,048ден.
  • Достапност: Има залиха
  • Шифра: 455189
  • Гарантен рок: 12 месеци
  • Рок на испорака: 13-16 дена
PLANET
Во кошничка
Листа на желби Спореди
Сподели

Technical Specifications

  • Summary: PLANET IP30 Industrial L2/L4 8-Port. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 9 - 48 V. Wall mountable
  • Vendor Homepage: https://www.planet.com.tw/en/product/igs-4215-8t2s
  • Name: NET SWITCH 8PORT 1000M/IGS-4215-8T2S PLANET
  • Category Code: SWI
  • Model name: IGS-4215-8T2S
  • Switch type: Managed
  • Switch layer: L2/L4
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Installed SFP modules quantity: 2
  • Networking standards: IEEE 802.1ad/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • MAC address auto-aging supported: Yes
  • MAC address auto-learning supported: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Number of VLANs: 4094
  • Switching capacity: 20
  • Throughput: 14.8
  • MAC address table: 8000
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Product colour: Blue
  • Housing material: Metal
  • Reset button: Yes
  • LED indicators: Yes
  • DIN rail mounting: Yes
  • International Protection (IP) code: IP30
  • Wall mountable: Yes
  • DC input voltage: 9 - 48
  • Operating temperature (T-T): -40 - 75
  • Storage temperature (T-T): -40 - 85
  • Operating relative humidity (H-H): 5 - 95
  • Storage relative humidity (H-H): 5 - 95
  • Width: 50
  • Depth: 87.8
  • Height: 135
  • Weight: 510
  • Certification: FCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00294
  • Unit Calculated Weight: 1
