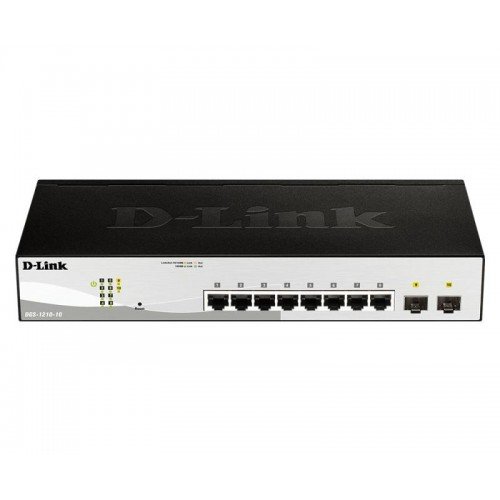

NET SWITCH 8PORT 10/100/1000/2P SFP DGS-1210-10 D-LINK

Technical Specifications

• Summary: D-Link 10-Port Gigabit Smart Managed Switch with 2 SFP ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U
• Vendor Homepage: https://www.dlink.com/en/products/dgs-1210-series-gigabit-smart-plus-switches
• Name: NET SWITCH 8PORT 10/100/1000/2P SFP DGS-1210-10 D-LINK
• Category Code: SWI
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• ARP inspection: Yes
• Configuring Location Settings (CLI): Yes
• System event log: Yes
• MIB support: Y
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 2
• Power connector: AC-in jack
• Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Head-of-line (HOL) blocking: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Number of VLANs: 256
• Switching capacity: 20
• Forwarding rate: 14.88
• MAC address table: 8000
• Store-and-forward: Yes
• Jumbo frames support: Yes
• Jumbo frames: 10000
• Packet buffer memory: 4.1
• DHCP features: DHCP client
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• Loop protection: Yes
• MAC address filtering: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Stackable: Yes
• Form factor: 1U
• Product colour: Black/Grey
• LED indicators: Yes
• Memory type: DDR3-SDRAM
• Internal memory: 128
• Flash memory: 32
• Noise level: 0
• Mean time between failures (MTBF): 1380058
• Power source: AC
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power consumption (max): 6.33
• Operating temperature (T-T): -5 - 50
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 90
• Storage relative humidity (H-H): 5 - 90
• Heat dissipation: 21.59
• Width: 280
• Depth: 126
• Height: 44
• Weight: 980
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.006484
• Unit Calculated Weight: 2
