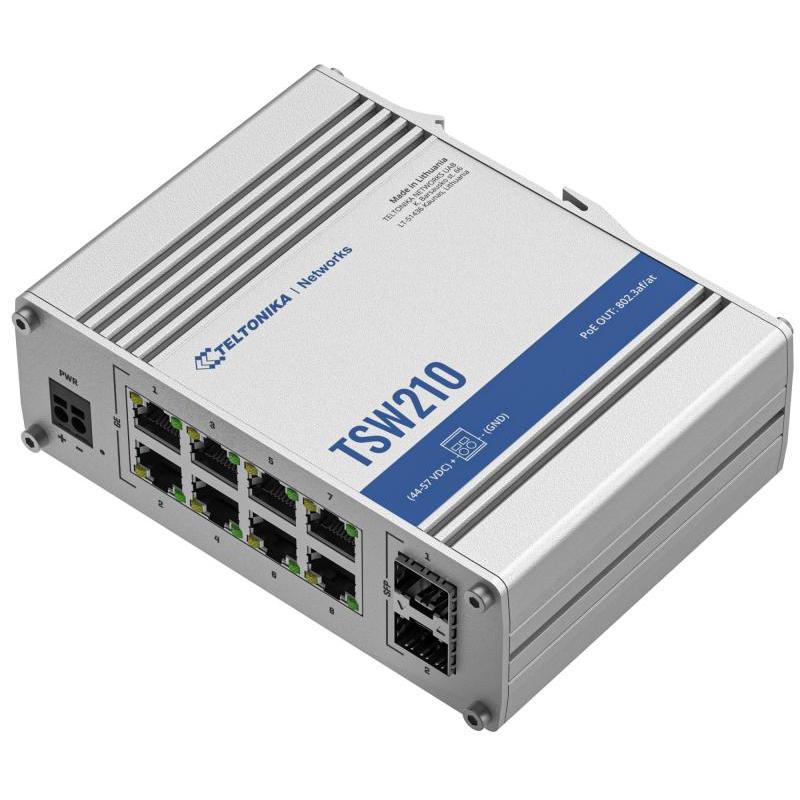

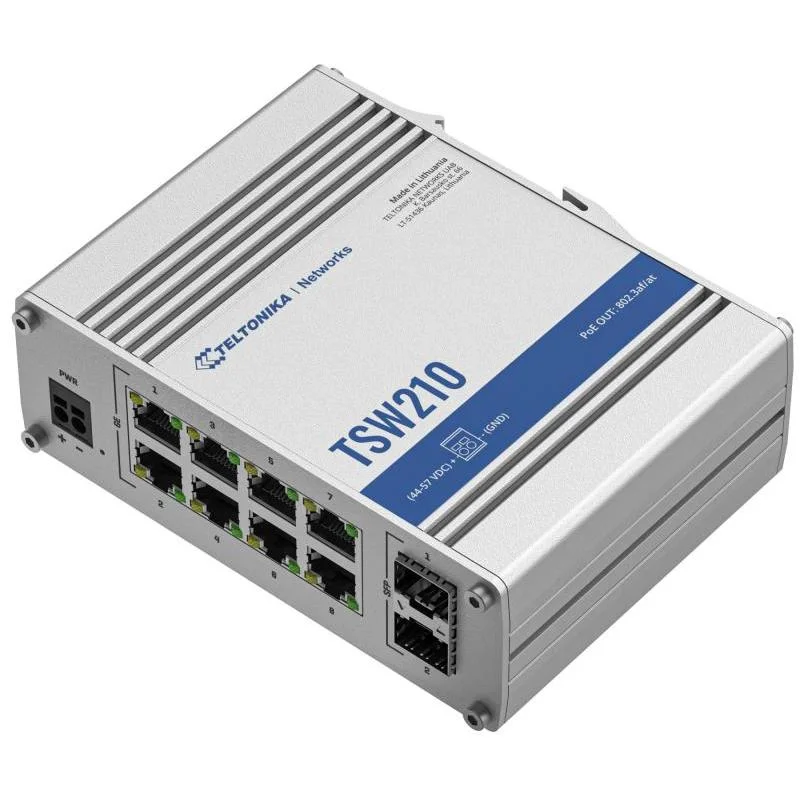

NET SWITCH 8PORT 10/100/1000/2SFP TSW210 TELTONIKA

Technical Specifications

• Summary: Teltonika TSW210. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. MAC address table: 2048 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 7 - 57 V. Wall mountable
• Vendor Homepage: https://teltonika-networks.com/product/tsw210/
• Name: NET SWITCH 8PORT 10/100/1000/2SFP TSW210 TELTONIKA
• Category Code: SWI
• Model name: TSW210
• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Installed SFP modules quantity: 2
• Networking standards: IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Switching capacity: 20
• MAC address table: 2048
• Jumbo frames support: Yes
• Jumbo frames: 9216
• Packet buffer memory: 128
• Product colour: Aluminium
• Housing material: Aluminium
• LED indicators: LAN/Power/Status
• DIN rail mounting: Yes
• International Protection (IP) code: IP30
• Wall mountable: Yes
• Power source: DC
• DC input voltage: 7 - 57
• Power consumption (typical): 1.03
• Power consumption (max): 3.71
• Operating temperature (T-T): -40 - 75
• Operating relative humidity (H-H): 10 - 90
• Width: 132
• Depth: 95.1
• Height: 44.2
• Weight: 500
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00088
• Unit Calculated Weight: 1
