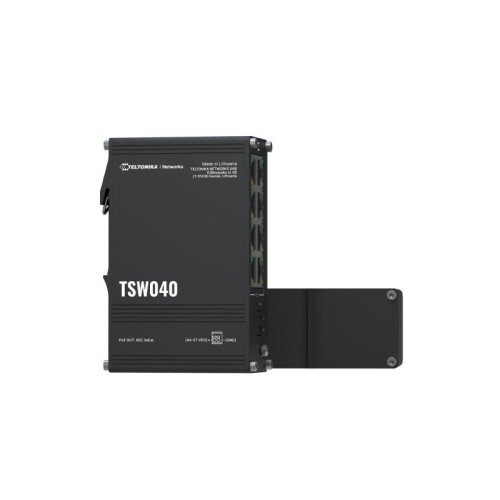

NET SWITCH 8PORT 10/100/POE+ TSW040 TELTONIKA

NET SWITCH 8PORT 10/100/POE+ TSW040 TELTONIKA
NET SWITCH 8PORT 10/100/POE+ TSW040 TELTONIKA
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 20
Врз основа на 0 коментари. - Напиши коментар
3,557ден.
  • Достапност:
  • Бренд: TELTONIKA
  • Шифра: 421416
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika NETWORKS TSW040 8-Port PoE+ Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2048 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 7 - 57 V. Power over Ethernet (PoE)
  • Vendor Homepage: https://teltonika-networks.com/products/ethernet-switches/TSW040/
  • Name: NET SWITCH 8PORT 10/100/POE+ TSW040 TELTONIKA
  • Category Code: SWI
  • Model name: TSW040
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Fast Ethernet (copper) ports quantity: 8
  • Networking standards: IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
  • Switching capacity: 20
  • MAC address table: 2048
  • Product colour: Black
  • Housing material: Aluminium
  • LED indicators: Link/Power/Status
  • Power source: DC
  • DC input voltage: 7 - 57
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) type supported: Active PoE
  • Power over Ethernet (PoE) ports quantity: 8
  • Power over Ethernet (PoE) voltage: 48
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 240
  • Operating temperature (T-T): -40 - 75
  • Operating relative humidity (H-H): 10 - 90
  • Width: 113.1
  • Depth: 74.6
  • Height: 41.2
  • Weight: 280
  • Quick start guide: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.000325
  • Unit Calculated Weight: 1
Specifications
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
DC input voltage7 - 57
Depth74.6
Fast Ethernet (copper) ports quantity8
Height41.2
Housing materialAluminium
LED indicatorsLink/Power/Status
MAC address table2048
Networking standardsIEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-40 - 75
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
Power over Ethernet (PoE) power per port30
Power over Ethernet (PoE) type supportedActive PoE
Power over Ethernet (PoE) voltage48
Product colourBlack
Quick start guideYes
SummaryTeltonika NETWORKS TSW040 8-Port PoE+ Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2048 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 7 - 57 V. Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget240
Weight280
Width113.1
Specs
Category CodeSWI
Description

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

  • 8 X POE-OUT RJ45
  • Eight PoE-out Ethernet ports with a total power budget of 240 W
  • 2-PIN POWER INPUT
  • Simple and suitable for industrial applications
  • INTEGRATED DIN RAIL
  • Easy mounting for plug-and-play deployment
  • WIDE VOLTAGE RANGE
  • 7-57 VDC, or 44-57 VDC for PoE-out

Model nameTSW040
NameNET SWITCH 8PORT 10/100/POE+ TSW040 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/979afa5b-da4e-4325-83eb-df6cbb51e8e1.Jpeg
Power sourceDC
Switch typeUnmanaged
Switching capacity20
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/979afa5b-da4e-4325-83eb-df6cbb51e8e1.Jpeg
Unit Calculated Volume0.000325
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://teltonika-networks.com/products/ethernet-switches/TSW040/
