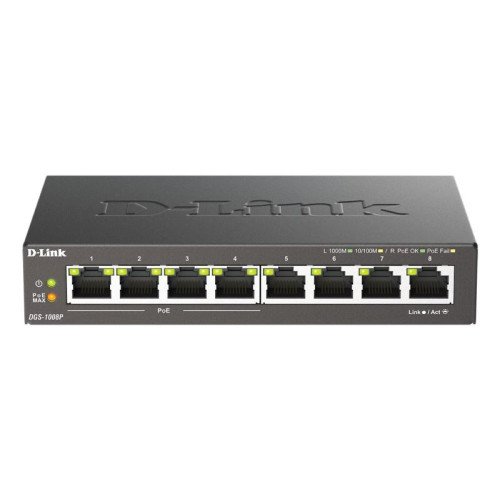

NET SWITCH 8PORT 10/100/1000/4POE DGS-1008P D-LINK

Technical Specifications

• Summary: D-Link 8-Port Gigabit PoE Unmanaged Desktop Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 - 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Form factor: Desktop
• Vendor Homepage: https://www.dlink.com/products/?pid=805
• Name: NET SWITCH 8PORT 10/100/1000/4POE DGS-1008P D-LINK
• Category Code: SWI
• Switch type: Unmanaged
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• ARP inspection: Yes
• Configuring Location Settings (CLI): Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Power connector: DC-in jack
• Networking standards: IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3u/IEEE 802.3x
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Switching capacity: 16
• MAC address table: 4000
• Form factor: Desktop
• Product colour: Black
• LED indicators: Yes
• Power source: DC
• Power supply included: Yes
• DC input voltage: 9 - 54
• Input current: 1,2
• Power consumption (max): 66.458
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 4
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 60
• Warranty period: 2
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -20 - 70
• Operating relative humidity (H-H): 5 - 95
• Width: 150
• Depth: 98
• Height: 28
• Weight: 383
• Quick start guide: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.006237
• Unit Calculated Weight: 1
