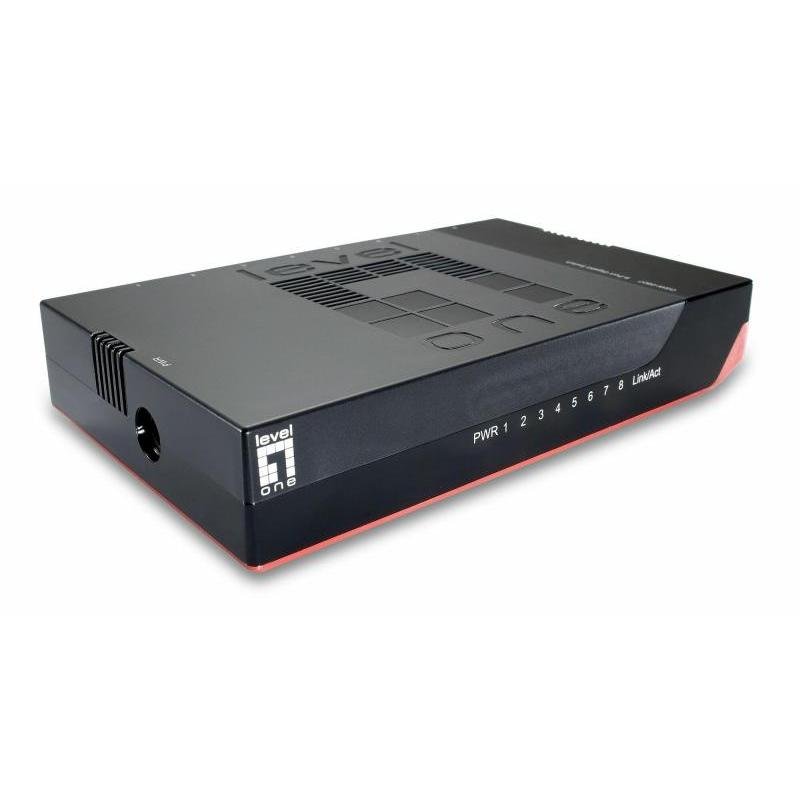

NET SWITCH 8PORT 10/100/1000M/GSW-0807 LEVELONE

NET SWITCH 8PORT 10/100/1000M/GSW-0807 LEVELONE
достава за 24h
NET SWITCH 8PORT 10/100/1000M/GSW-0807 LEVELONE
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 16
Врз основа на 0 коментари. - Напиши коментар
2,815ден.
  • Достапност: Има залиха
  • Бренд: LEVELONE
  • Шифра: 428815
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: LevelOne 8-Port Gigabit Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
  • Vendor Homepage: https://www.level1.com/level1_en/gsw-0807-8-port-gigabit-switch--levelone-530150
  • Name: NET SWITCH 8PORT 10/100/1000M/GSW-0807 LEVELONE
  • Category Code: SWI
  • Model name: GSW-0807
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 8
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Flow control support: Yes
  • Switching capacity: 16
  • MAC address table: 8192
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet forwarding rate (1 Gbps): 1488000
  • Packet forwarding rate (10 Mbps): 14880
  • Packet forwarding rate (100 Mbps): 148000
  • Product colour: Black/Red
  • LED indicators: Activity/Link/Power
  • Wall mountable: Yes
  • Flash memory: 1024
  • Input current: 1
  • Power consumption (typical): 3
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 5 - 90
  • Storage relative humidity (H-H): 10 - 90
  • Width: 149.5
  • Depth: 89
  • Height: 27
  • Weight: 135
  • Quick start guide: Yes
  • AC adapter included: Yes
  • Package type: Box
  • Package width: 142
  • Package depth: 92
  • Package height: 92
  • Package weight: 300
  • Certification: CE, RoHS, FCC
  • Country of origin: China
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00135
  • Unit Calculated Weight: 1
Specifications
AC adapter includedYes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, RoHS, FCC
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Country of originChina
Depth89
Flash memory1024
Flow control supportYes
Full duplexYes
Gigabit Ethernet (copper) ports quantity8
Harmonized System (HS) code85176990
Height27
Input current1
Jumbo frames9000
Jumbo frames supportYes
LED indicatorsActivity/Link/Power
MAC address table8192
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)5 - 90
Operating temperature (T-T)0 - 40
Package depth92
Package height92
Package typeBox
Package weight300
Package width142
Packet forwarding rate (1 Gbps)1488000
Packet forwarding rate (10 Mbps)14880
Packet forwarding rate (100 Mbps)148000
Power connectorDC-in jack
Power consumption (typical)3
Product colourBlack/Red
Quick start guideYes
Storage relative humidity (H-H)10 - 90
Storage temperature (T-T)-40 - 70
Store-and-forwardYes
SummaryLevelOne 8-Port Gigabit Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
Wall mountableYes
Weight135
Width149.5
Specs
Auto-negotiationYes
Category CodeSWI
Description

The LevelOne GSW-0807 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 2000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption. Power Saving FeaturesThe GSW-0807 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections. Compact and Stylish DesignThe stylish, compact wall-mountable housing of GSW-0807 fits any working environment. It comeswith 8 10/100/1000Mbps ports to meet SOHO and home network expansion needs. Easy to UseThe GSW-0807 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.

  • 8 Gigabit Ethernet ports
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Supports 8K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Provides wall or desktop mounting
  • Quick and easy installation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

Model nameGSW-0807
NameNET SWITCH 8PORT 10/100/1000M/GSW-0807 LEVELONE
PictureUrlhttps://static.elko.cloud/ProductImages/f03a69de-65e4-4954-bc9e-98bc0ac57e8f.Jpeg
Switch typeUnmanaged
Switching capacity16
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/f03a69de-65e4-4954-bc9e-98bc0ac57e8f.Jpeg
Unit Calculated Volume0.00135
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://www.level1.com/level1_en/gsw-0807-8-port-gigabit-switch--levelone-530150
